Hadean Mainframe
Hadean Mainframe

Hadean Mainframe

LIMITED EDITION

Up to 42km/h • 40km Range
Rated 5.0 out of 5
Based on 3 reviews
$3,199.00

As low as 6 payments of $533.16 with

  • Custom Hydro Dipped Circuit Board Design
  • Polished Raw Hardware
  • International Shipping Available
Notify Me When Available

ABOUT THE BOARD

Introducing the Hadean Mainframe - our most heavily customised limited edition model to date. With only 14 boards available worldwide, seven in mystic purple and seven in neon green, this board is unparalleled in both its unique look and rarity. Each board features a unique hydro dipped design reminiscent of a circuit board look, custom hardware, and transparent battery casing.

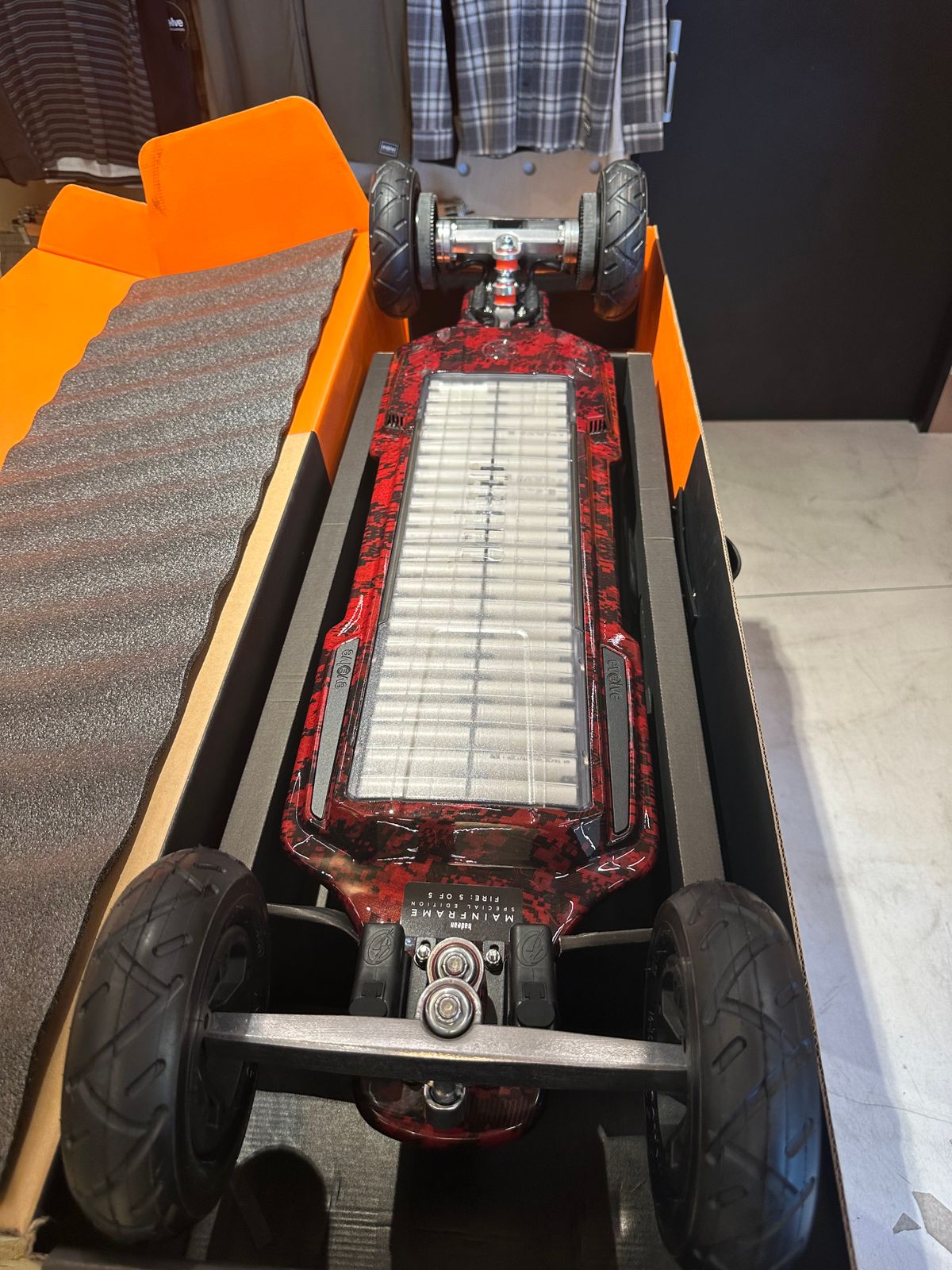

The polished raw hardware, including trucks, motor plates, base plates, and screws, add to the board's individual look to make you stand out from the pack. The clear battery enclosure showcases the board's exposing the battery cells and cutting-edge technology, making it a true collector's item.

  • Top speed of 42kph
  • Dual 3000w motors (Enough power to make it up the world's steepest street with ease)
  • 40km Range (43.2V 16AH 12S4P 21700 691WH)
  • Heavy-duty Phaze remote (LCD display + 4 adjustable speed modes)
  • Smart integrated lighting (Responsive brake, fault/battery status, + full-colour customisation & animation sequences)
  • Explore By Evolve in-app customisation (Adjust lighting hues + acceleration & braking curves)
  • E-FOC motor controller (Smooth control of Hadean's intense power)
  • Forged carbon fibre deck (Used on supercars for its lightweight strength)
  • Patent Pending deck (Maximum performance without bulk + cooling air vents)
  • Refined concave (Dropdown shoulders + wider foot landing to accommodate all shoe sizes)

SPECS

DECK MATERIALS:Forged carbon fibre
DECK LENGTH:100cm (39.3")
WHEEL BASE:96.5cm (38")
TRUCKS:Evolve Super Carve Trucks - Forged/CNC & Cast components - 30.6cm (12") width, 8mm axles
WHEELS:Evolve 175mm/7 inch pneumatic tyres, Evolve all-terrain hubs - compatible with Evolve Street Conversion Kits
MOTOR:Dual 3000w-rated 6368 custom brushless sensored motors
MOTOR CONTROLLER / ESC:Evolve Custom 50V Dual-Motor Driver, FOC motor commutation, Bluetooth connection & adjustable acceleration curves
BEARINGS:Evolve Precision Ceramic Bearings
BATTERY:43.2V, 16AH, 691.2Wh, custom-built 12S4P configuration, 21700 Cells on custom flexible PCB using custom BMS - maximum continuous discharge 140amp
RECHARGE:3.5 - 4hr
REMOTE:Evolve Phaze remote with CNC aluminium-reinforced body
WEIGHT:13.5kg (29.7lb)
RANGE:40km (24.8 miles)
TOP SPEED:42km/hr (26mph)
MAX LOAD:120kg / 265lb
SUITABLE TERRAIN:Short grass, dirt, gravel, roads and footpaths
SLIDES:Off road yes, not recommend on sealed surfaces
HILLS:35% +
BRAKING:FOC regenerative braking with smooth engagement and adjustable brake curves
AESTHETICS:World-first and industry-leading chassis-style deck made from forged carbon fibre. The deck seamlessly integrates performance with technology. A custom CNC heatsink incorporates cooling vents and adds to the sophisticated performance styling.
LIGHTS:Integrated under-body & logo LED lights with user-customisable control via the remote and Evolve app, including Smart Brake Lights

WHAT'S IN THE BOX

  • Your new Hadean Mainframe
  • Fast charger (5A)
  • Phaze Remote, leash, remote case and USB-C charging cable
  • Accessories carry case
  • Y tool
  • Spare screws set

SHIPPING

If you have any questions, please don't hesitate to email our customer service team.



DOMESTIC

All our boards are sent through Startrack or TNT Road Freight. Our boards must be handled as dangerous goods due to Australian lithium battery regulations which may require a mandatory overnight holding period, which can affect shipping times. These packages are not tracked as well as standard post so please use the below transit times as a rough guide.

We are unable to ship to PO boxes, military bases or temporary accommodation. Please provide us with a home/work address and ensure your billing/shipping address is correct.

TRANSIT TIMES:

  • South East Queensland, 3 – 5 Days
  • Queensland, 5 – 7 Days
  • Rural Queensland, 7 – 12 Days

  • North Coast of NSW, 3 – 4 Days
  • NSW, 4 – 6 Days
  • Rural NSW, 7 – 12 Days
  • Victoria, 4 – 7  Days
  • Rural Victoria, 7 – 12 Days
  • ACT, 5 – 7 Days
  • South Australia, 5 – 7 Days
  • Rural South Australia, 7 – 12 Days
  • Western Australia, 7 – 12 Days
  • Rural Western Australia, 9 – 12 Days
  • Tasmania, 7 - 12 Days
  • Northern Territory, 9 - 12 Days

 * Please note that all transit times are calculated in Business Days



INTERNATIONAL

Please check here to see if you have a local distributor in your country.

If you do not have a local distributor in your area and it's not listed above please contact ask@evolveskateboards.com.au for assistance.



FAQs

Please view more FAQs through this link here.

OFFERS

HALF PRICE HELMETS!

We want everyone to ride safely so when buying a board you can get an Evolve Helmet at HALF PRICE by adding the discount code HELMET during checkout.


** PLEASE NOTE:

- ONLY ONE DISCOUNT CODE CAN BE REDEEMED DURING CHECKOUT

- YOU MUST ADD A HELMET TO YOUR CART FIRST

POWER

6000

watts


TOP SPEED

42

km/h


RANGE

40

km


HILLS

35%+

incline

Hadean Mainframe

The GTR Bamboo takes the best features of old-school deck craftsmanship and merges them with cutting-edge technology to produce the ultimate electric skateboard.

PERFORMANCE DRIVEN

Get more performance without compromising on design thanks to our patent pending layered electric system.

BAMBOO FLEX

We’ve teamed up with one of the world’s leading skate deck manufacturers to create a deck constructed from layered bamboo and fiberglass to put you in the goldilocks zone for flex.


The segmented battery enclosure allows you to harness the full flex of the bamboo without any risks to the electrics.

COOLING

Forged aluminium is CNC’d to create precision dual finned channels for maximum heat dissipation.


This keeps the electrics cool and efficient so you get maximum performance.

A NEW LEVEL OF CONTROL

Designed and developed in Australia the E-FOC revolutionises how smoothly a rider can harness the intense power produced by the GTR Series 2's dual 3000w motors and 10S battery structure.

PERFECT STANCE

With a concave deck and a wide foot landing to accommodate all shoe sizes you can brace against the deck to secure through tighter carves and aggressive take offs.

PHAZE REMOTE

The Phaze remote provides intuitive acceleration and braking through its dual trigger design and shrouds it in a robust aluminium frame.


A CNC aluminium frame creates the backbone of the controller, strengthening it with a construction that aims to create a remote that meets the needs of the most hardcore riders.

SEE THE CONTROL

Your real time ride data is displayed on the full colour LCD display. With four speed modes you can set your controller to meet your skill level as it progresses.


IN APP CUSTOMISATION

Control your GTR experience even further with the updated Explore By Evolve app.


Tweak the brake and acceleration curve to exactly the way you like it for the ultimate in customisation.

REVIEWS

average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
3 Reviews
Reviewed by PE C.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Love this design!

The Hadean is a game changer for Evolve and the Mainframe is next level for a custom !

Loading...
Was this helpful?
Reviewed by paul j.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Corsa day one!

There was a little glitch initially and I had a board but not a working remote. Customer service was exceptional and sent out a new remote in a day. So I looked at the board for a few days without the ability to ride it. Once I did, I started on sport but within a mile switched to Corsa. Just be ready and brace your back leg with weight forward. This thing is a rocket ship. Took it off-road across miles of grass, soil and soft sand. It powered through everything, but would slide like a dream off-road. Love the board,

Thanks

Paul Johnson 55yrs old

Florida USA

Evolve gtr carbon street

Evolve Hadean carbon Mainframe AT

Loading...
Was this helpful?
Reviewed by Hamish M.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Hadean Mainframe Fire

Awesome limited edition board with great great graphics. The looks match the performance. The polished raw hardware really sets it off.

I’m very happy I upgraded from the GTR to the Hadean and now I have a bamboo and carbon so the best of both worlds!

Loading...
Was this helpful?
