Project BMX

Name: Project BMX
Brand: Evolve
SKU: 201011-00
Price: 4499.00 AUD
Availability: InStock
Rating: 5.0 (17 reviews)

$4,499.00

Rated 5.0 out of 5

Based on 17 reviews

As low as 6 payments of $749.83 with

Learn more about eBike Rebates

Limited Numbers
Iconic BMX Aesthetic
Nimble 24” Design

Colour

Wheel Option

In stock shipping now

Notify Me When Available

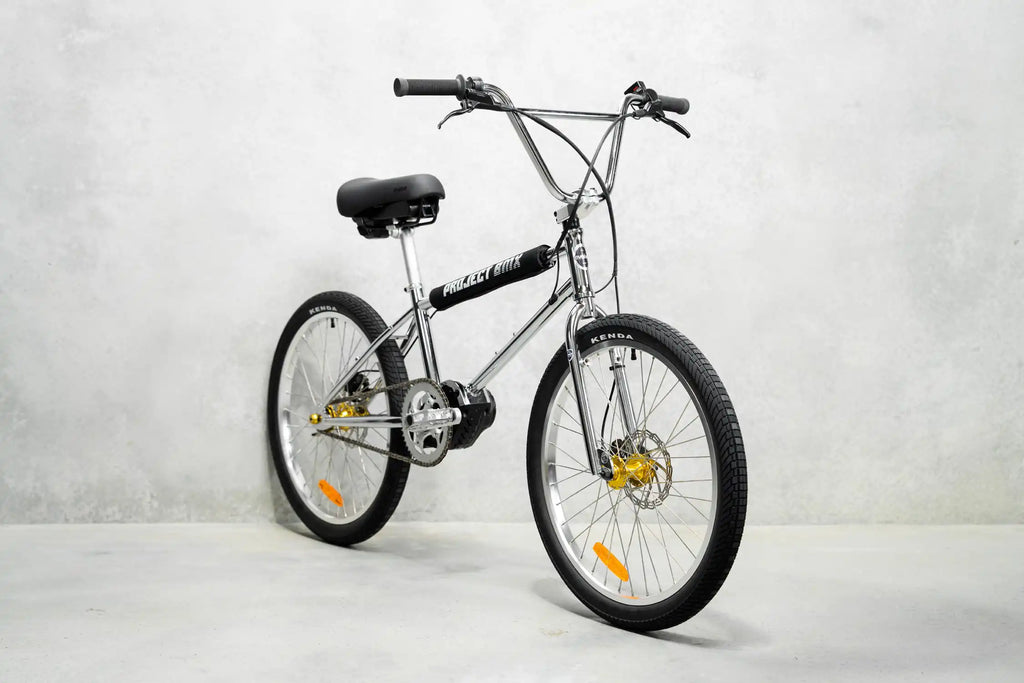

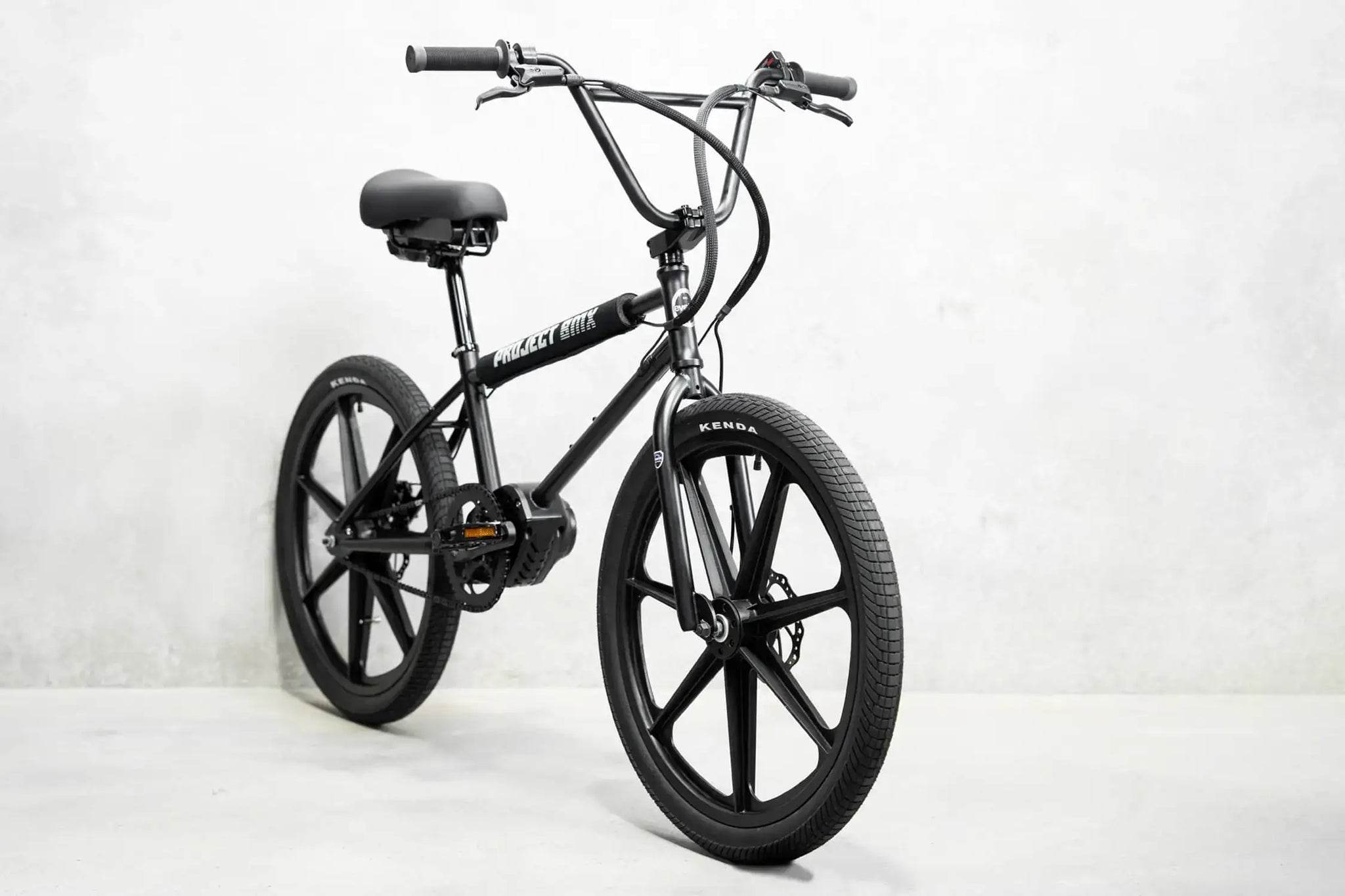

Project BMX is a visionary quest to seamlessly blend electric innovation with authentic BMX geometry, crafting an unparalleled ride experience tailored for cyclists who need a little more cool from their bike. The ethos was to make no sacrifices to the ride feeling or look of traditional BMX - by using a nimble 24” design for agility and fluidity, and stealthy integration of the technology to maintain traditional aesthetics, Project BMX does just that. RIDES LIKE A BIKE Many eBikes place their motors and batteries in positions that are easiest and/or cheapest, with little regard to the effects on the rider experience. Frame geometry and weight distribution are pivotal in electric bike design, optimising rider comfort and bike handling. The carefully calculated angles and weight placement on Project BMX lower the centre of gravity, enhancing stability and control, especially at higher speeds or during tight manoeuvres. This balance allows for a natural riding posture and facilitates intuitive control, improving the interaction between rider and machine. KEEPING IT REAL eBikes can be big, bulky, and a little bit ugly. We’ve painstakingly retained the iconic BMX spirit, seamlessly nestling the battery within the seat and embedding a potent mid-drive motor into the frame. The outcome? A sophisticated, perfectly balanced old-school BMX aesthetic that’s guaranteed to draw attention. Project BMX is crafted with premium Chromoly frame and fork tubing courtesy of TANGE. It’s not just a ride but a robust statement of quality.

RANGE:	Up to 60 km / 37 miles with Pedal Assist
SPEED:	Up to 36 kph / 23 mph Pedal Assist + Throttle
WEIGHT:	20.5 kg
MODES:	5-Speed modes

MOTOR:	Bafang M560 Mid Drive Motor
RANGE:	Up to 25km / 15.5 miles
FIRMWARE:	500W / 250W
VOLTAGE:	48V
RATED POWER:	750W (LIMITED BY FIRMWARE)
WEIGHT:	3.3KG
GEAR:	STEEL
CRANK ARM:	17OMM

BATTERY:	36V 9.6 AH SAMSUNG 48X 21700
WH (WATT-HOUR):	345.6 WH
WEIGHT:	2KG
LOCK:	BUILT-IN LOCK POINT
CHARGE:	3 HOURS

LED Display:
SPEEDOMETER:	KPH / MPH
LED REAR LIGHT CONTROL:	3 MODES
IP RATED:	X5
WALK ASSIST MODE:	YES

FRAME SET:	Lightweight & Strong Chromoly Frame
MATERIAL FRAME:	CHROMOLY
TESTING:	ISO4210
ADJUSTABILITY:	140MM POST ADJUSTMENT
HEADSET:	INTEGRATED
WEIGHT LIMIT:	130 kg
SADDLE MATERIAL:	NYLON + CARBON FIBER
SADDLE CERTIFICATION:	ISO 4210
SADDLE ADJUSTABILITY:	ANGLE + FRONT TO BACK

WHEELS	Spokes 24”/Skyway Tuffs 24”

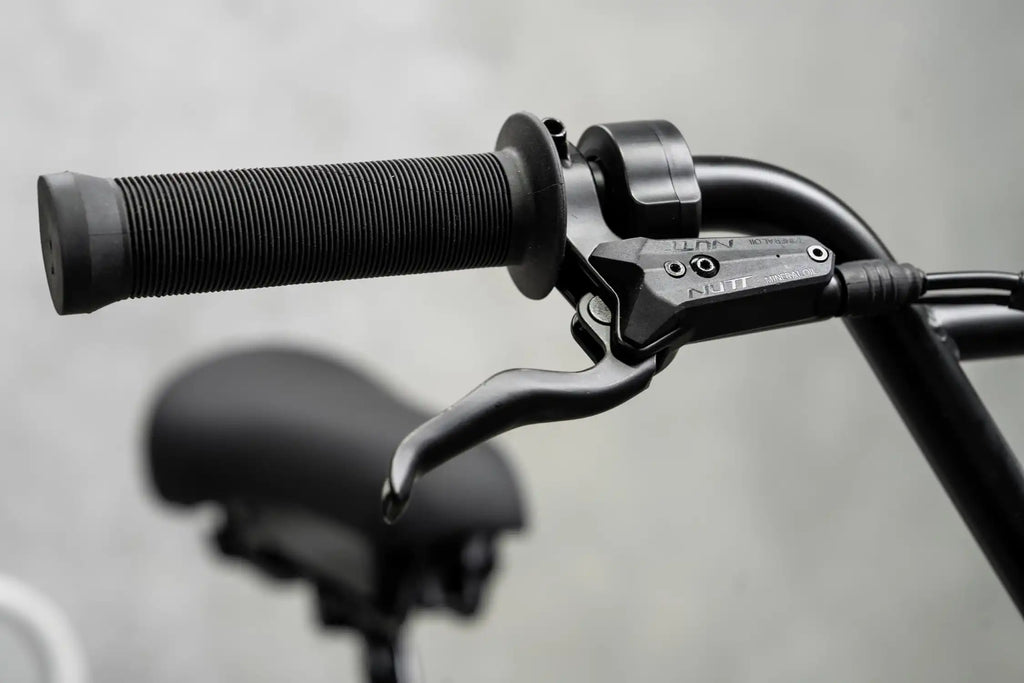

BRAKES:	Mechanical Disk 160mm 24” (front V brake on Skyway Tuff wheels)
TYRE:	KENDA ROAD SLICK 24” X 2.10
INNER TUBE:	24X1.9/2.125 SCHRADER VALVE

Your New Evolve Electric BMX
Battery
Reflector Kit
Bike Bell
Product Manual

How fast does the bike go?

Up to 36kph/23mph Pedal Assist + Throttle.

What is the range?

Up to 60km/37 miles with pedal assist. Up to 25km with throttle only.

Does it have speed modes?

Project BMX has 5 different speed modes that the user can select from the handlebar display.

How much does the bike weigh?

20kgs / 44lbs

Why a Mid-Drive Motor and not a Hub Motor?

Using a mid-mounted motor in Project BMX goes far beyond maintaining aesthetics. These kinds of motors offer substantial benefits over hub drive systems found on other commuter/urban e-bikes.

The mid-drive allows for optimal weight distribution for handling, a smoother and more natural pedal assist feeling, and eliminates the drawbacks of adding rotational mass to the rear wheel. They are also quieter, and being connected directly to the crank increases the motor’s efficiency to make the most of the bike’s range.

What is the difference between the 250W and 500W Project BMX?

The 500W has a higher power rating allowing the motor to provide more torque, which will result in faster acceleration and better performance. It comes standard with a throttle, and no speed limit, intended for use on private property*.

The 250W is road-compliant with local road rules. This model uses the same motor rated to 750W but uses a 250W firmware which decreases power and torque. It is pedal assist-only (no throttle), and has a 25kph speed limit. Users may choose to add a throttle, which will allow acceleration up to 36kph but no longer be compliant.

*This FAQ is not to be construed as legal advice. Always check your local laws and ordinances to ensure you are in compliance.

Is it waterproof?

• Motor/Drive system - IPX6 (Protected against high-pressure water stream from any angle.)

• Display - IP X5 (Protected against low-pressure water stream from any angle)

• Throttle - IP X5 (Protected against low-pressure water stream from any angle)

• Connectors - Battery to Drive System - IP67 ( Completely Protected against solids and short periods of immersion in water while under pressure 15cm and 1m)

• Battery - Sealed

Does it come with a warranty?

Yes, all bikes are covered in a limited 1-year warranty.

Project BMX is currently in stock and shipping now!

Your BMX cruiser, now electric.

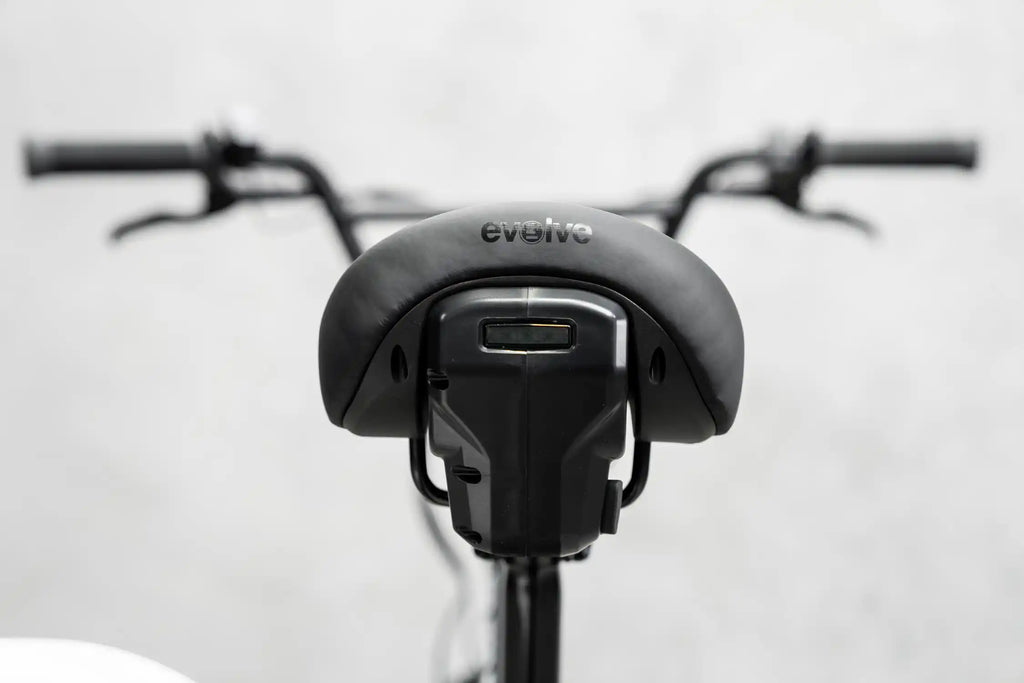

Introducing a distinctive 36V battery system intricately designed to seamlessly integrate with the Project BMX drive system. The battery pack achieves an ideal harmony between range and power, discreetly nesting within the saddle to preserve the classic BMX cruiser frame aesthetic.

This innovative system facilitates effortless battery swapping, empowering riders to expand their adventures with added range.

Crafted in collaboration with VELO, the bespoke saddle seamlessly merges traditional adjustability, comfort, and innovation. It incorporates a built-in rail and lock mechanism, providing a secure home for the Evolve 36V Battery.

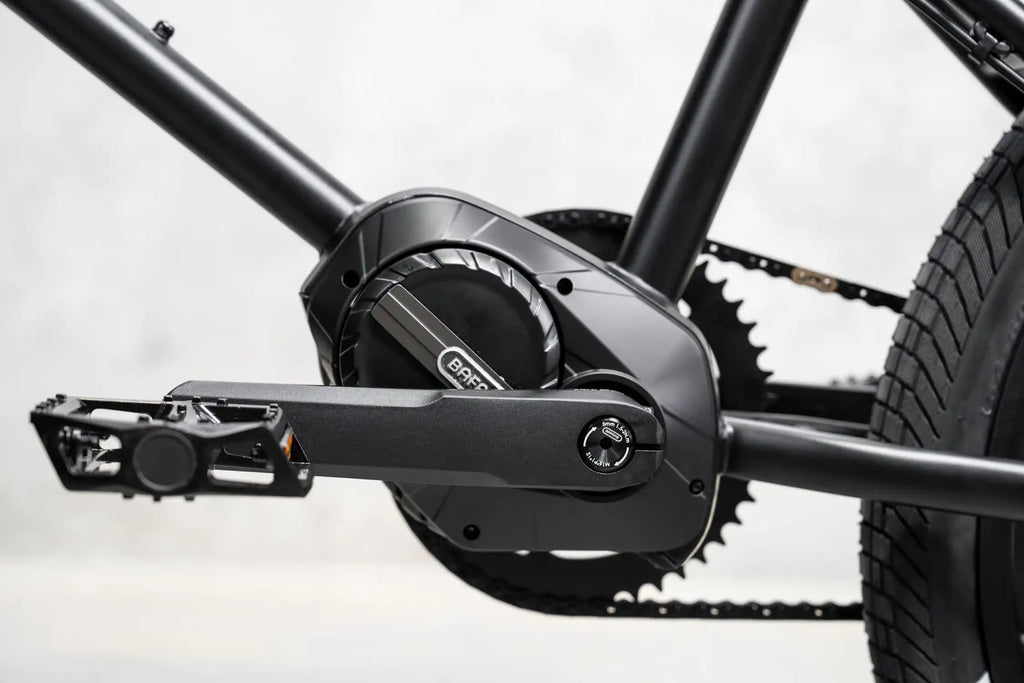

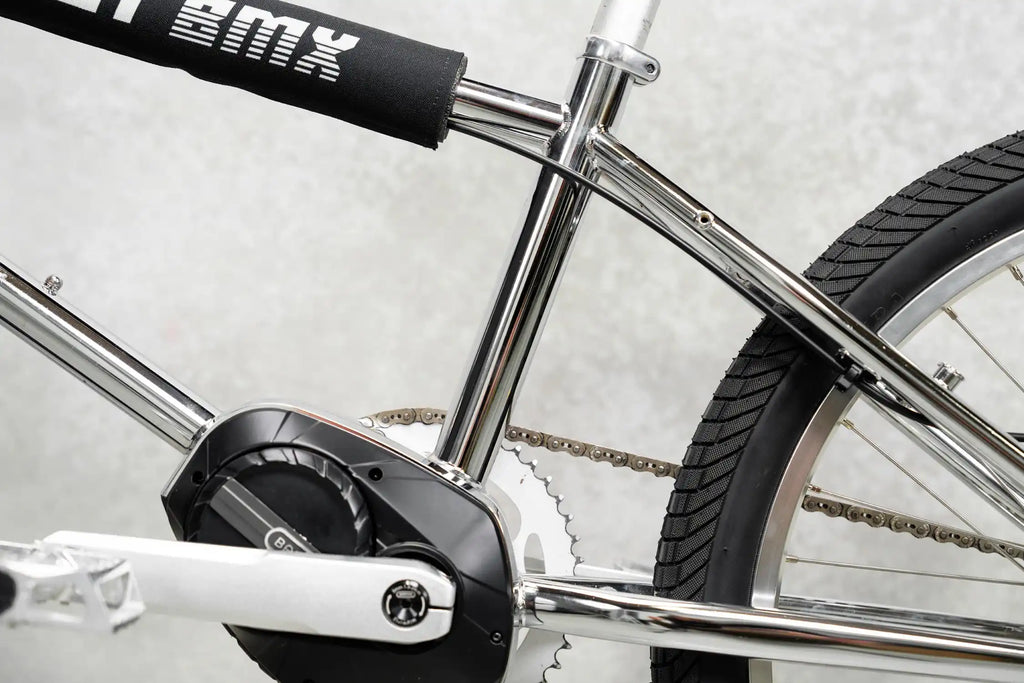

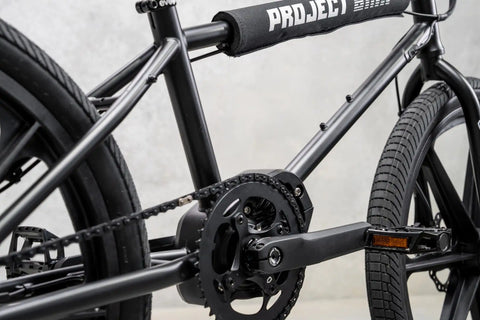

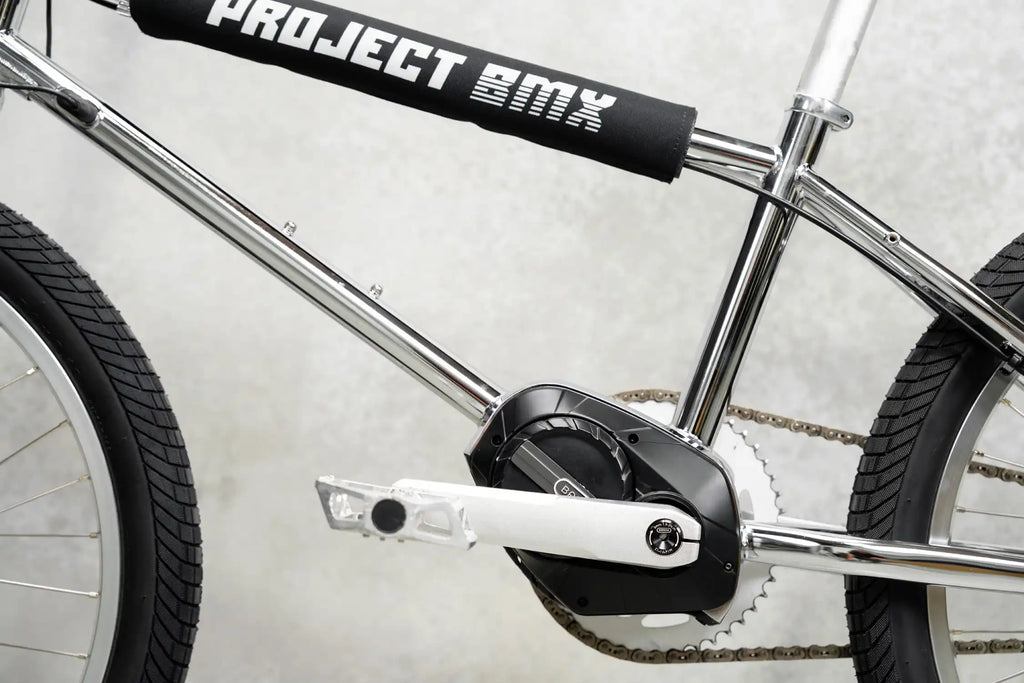

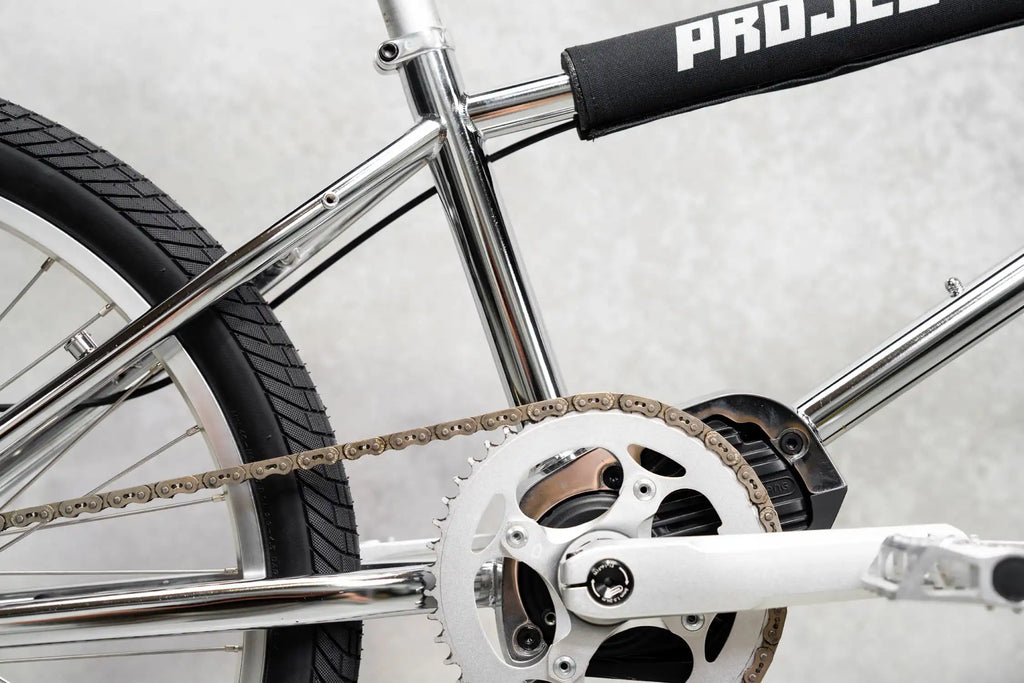

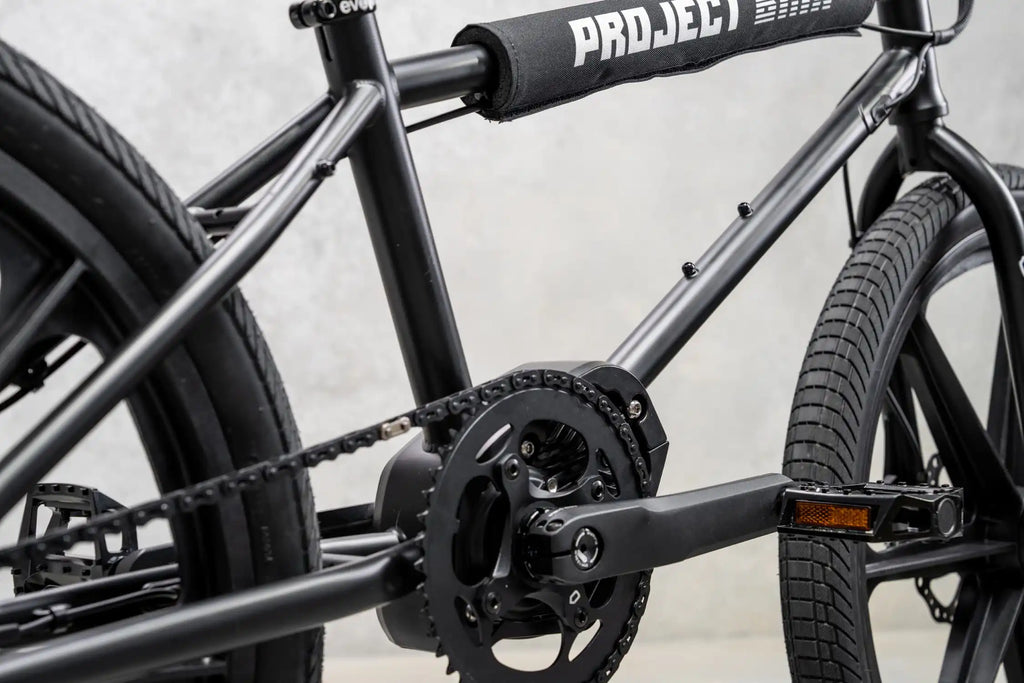

Using a mid-mounted motor in Project BMX goes far beyond maintaining aesthetics. This kind of motor offers substantial benefits over hub drive systems found on cheaper electric bikes.

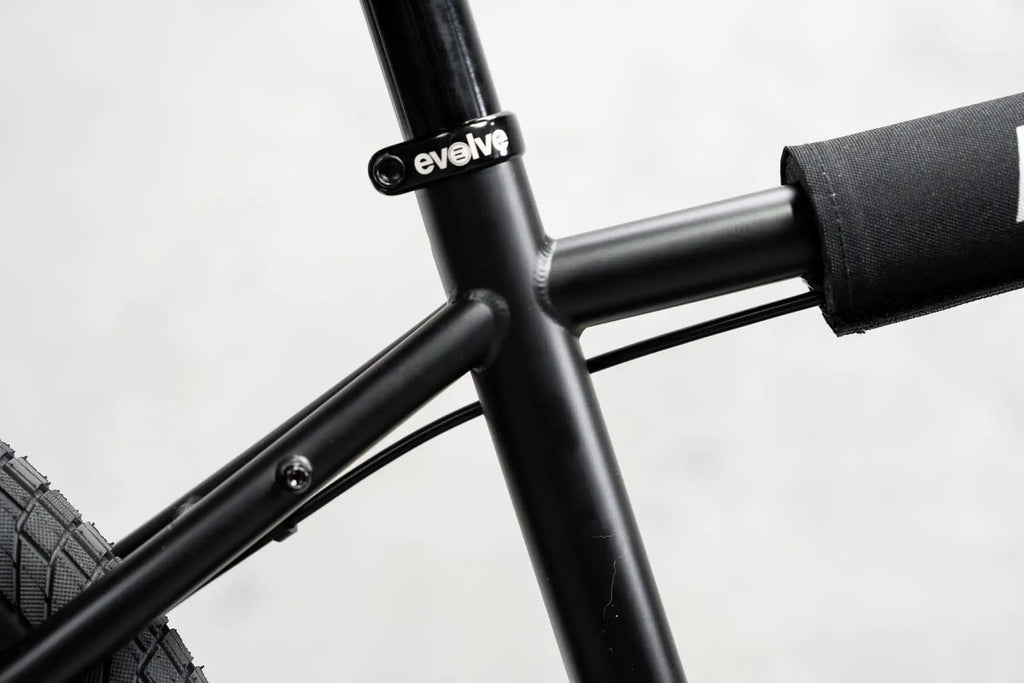

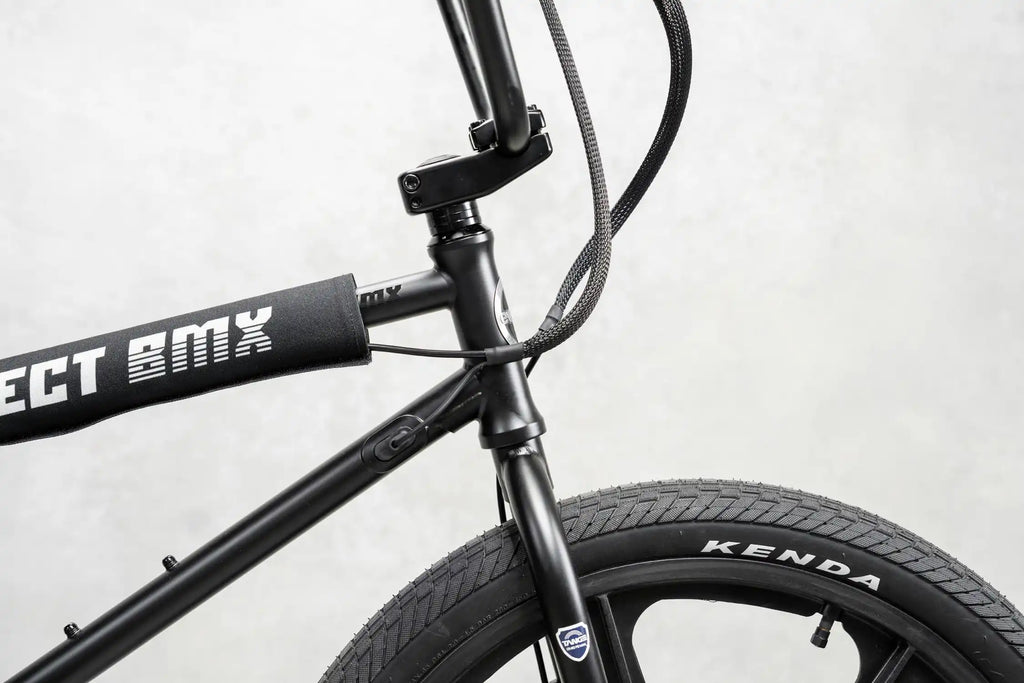

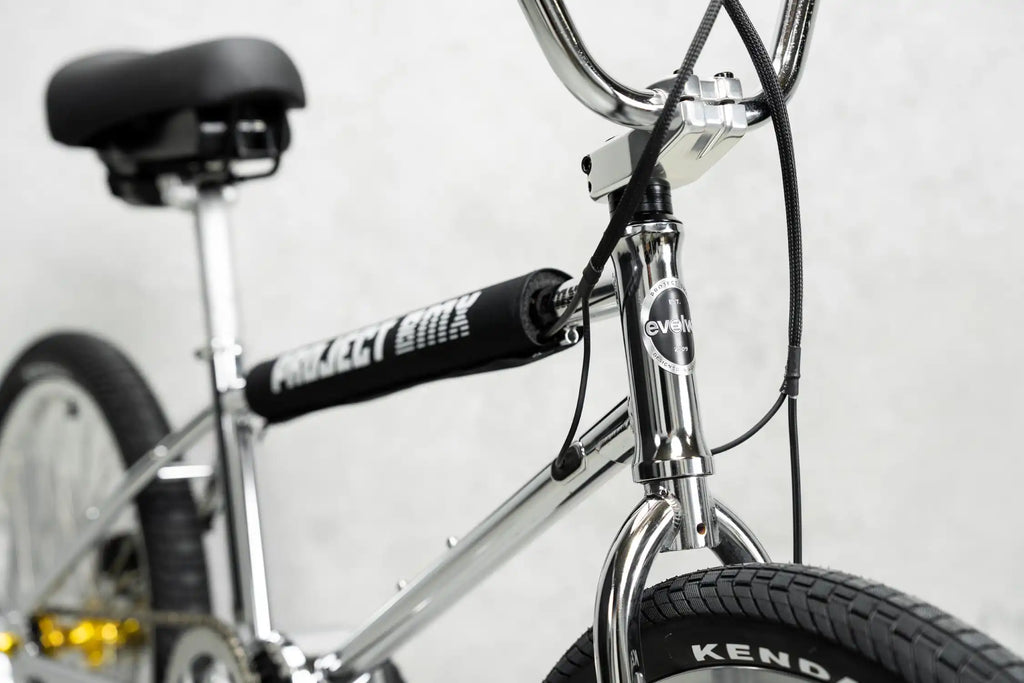

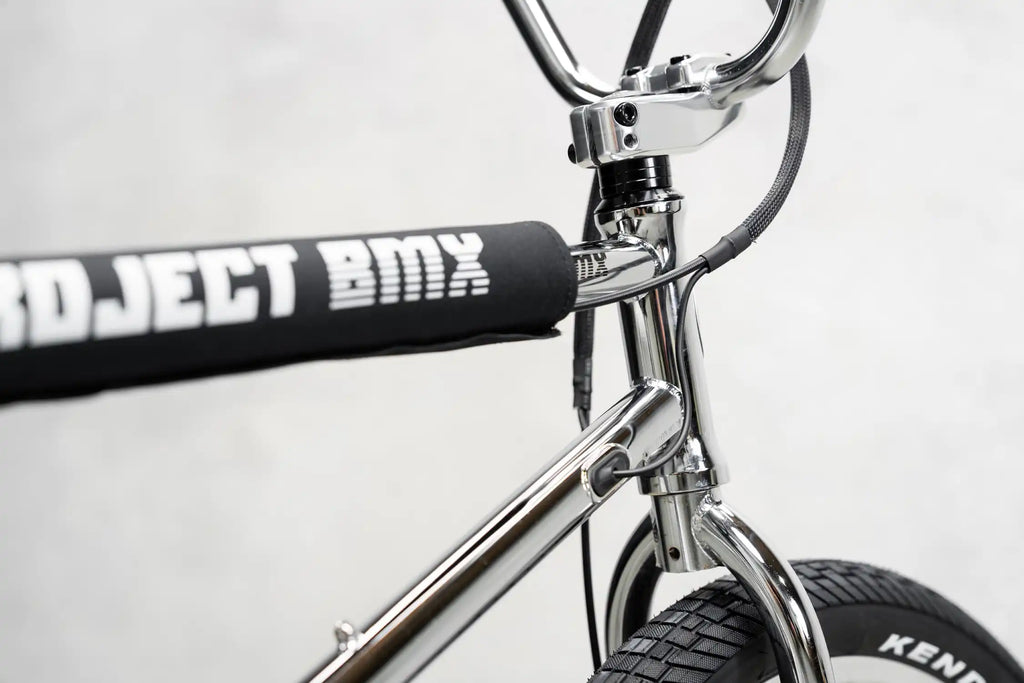

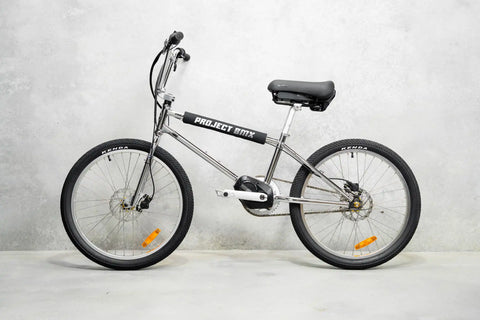

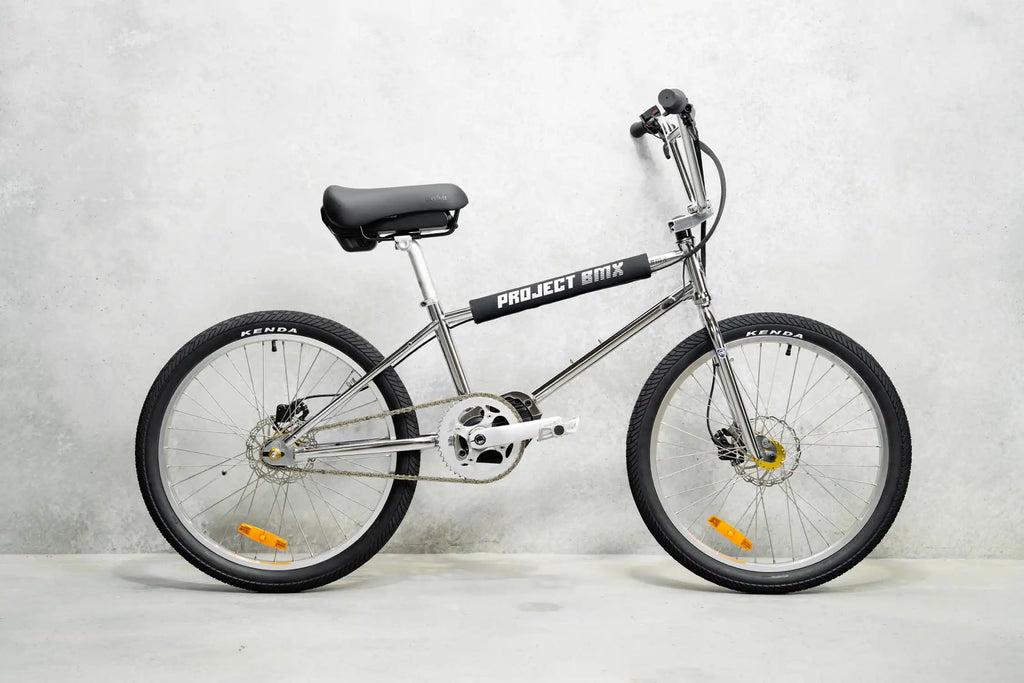

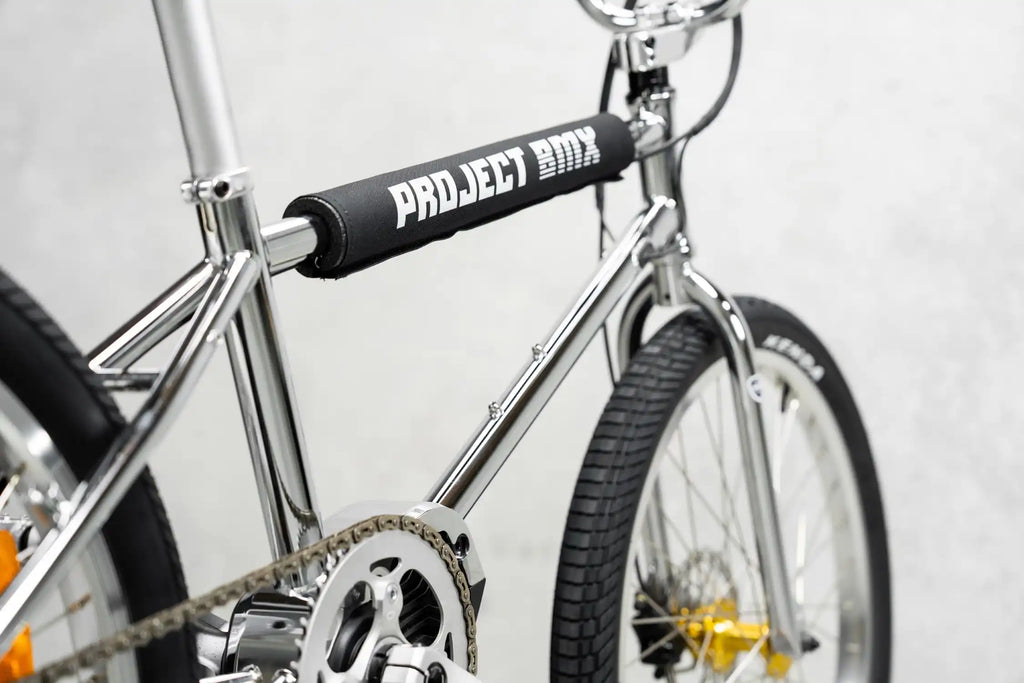

The frame design prioritises both comfort and bike control. Collaborating with Tange, a revered name in the bicycle industry with over 90 years of expertise in quality chrome, multi-tubing, and high-end engineering, ensured excellence.

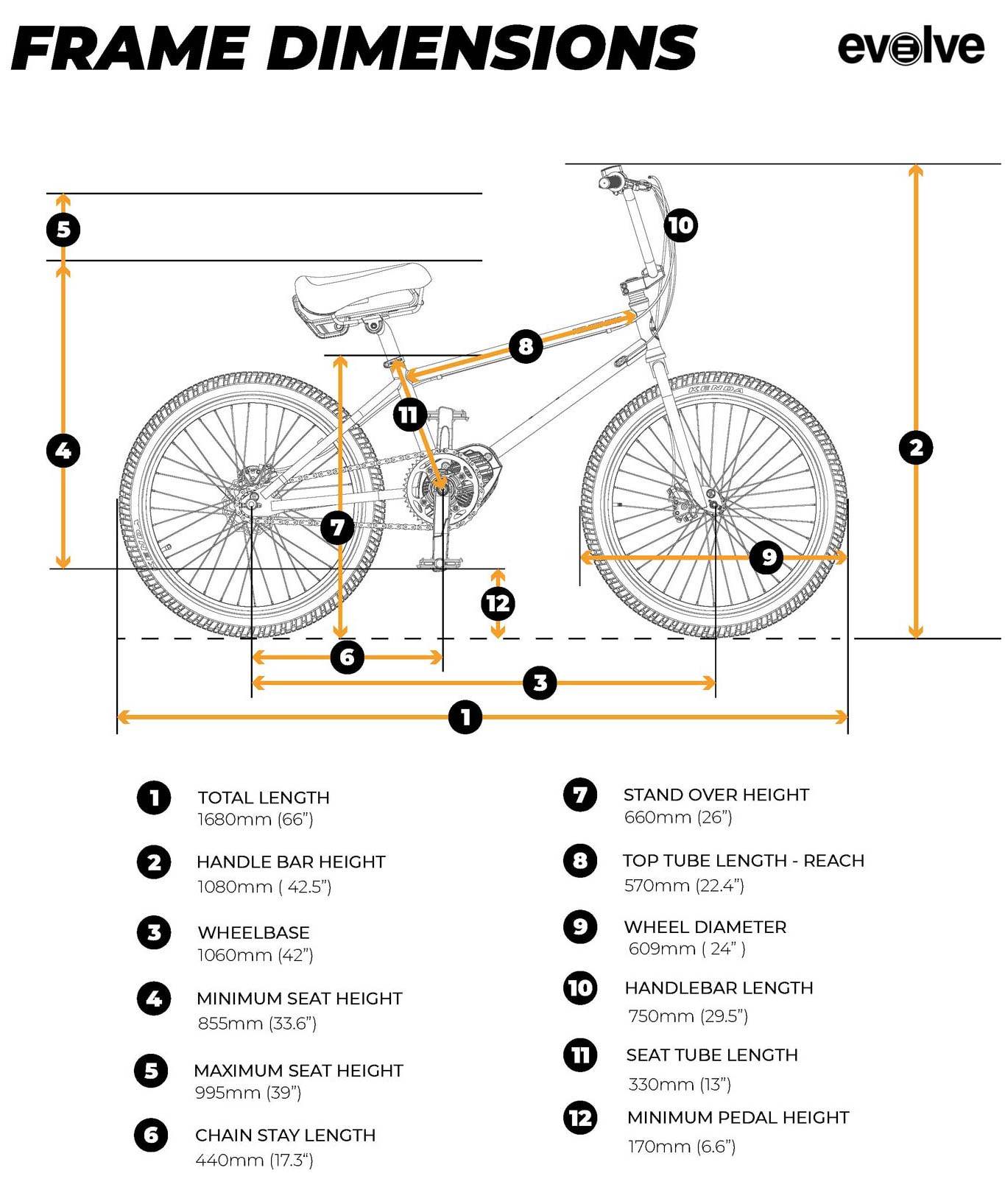

Crafted from Chromalloy, the frame achieves a delicate balance, offering lightness without compromising strength. The mellow 70-degree head tube angle facilitates smooth turns, complemented by a 26-inch standover height for user-friendly access, suitable for individuals five foot four and above.

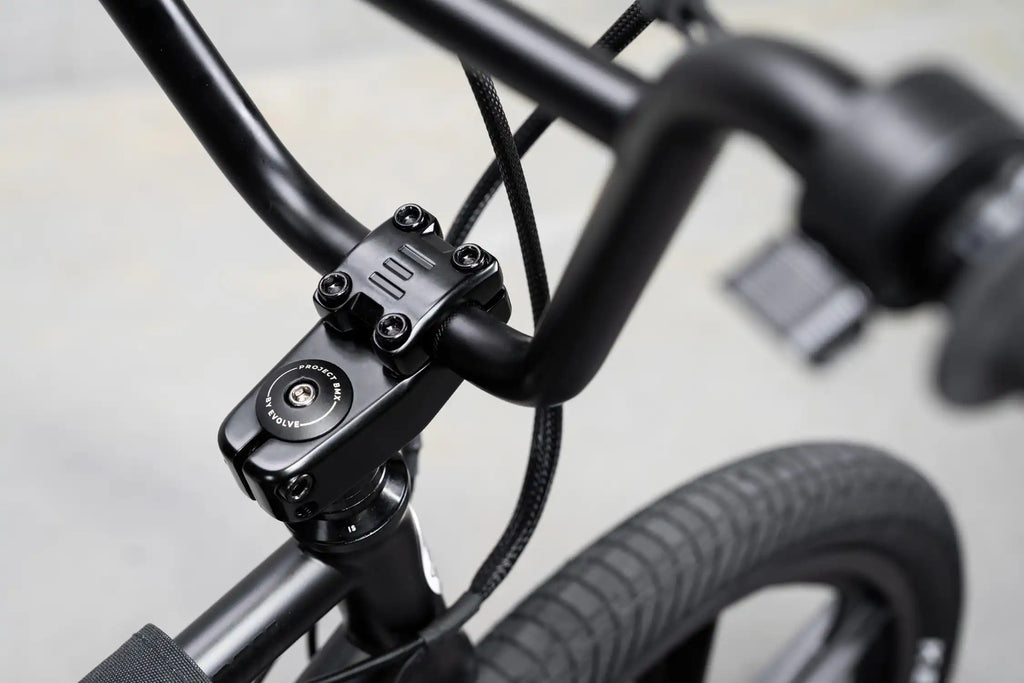

The sleek, waterproof LED display keeps riders informed about the ride while being discreet enough to maintain the overall aesthetics of the simple BMX style.

Monitor speed, battery status, and riding mode with ease and use the effortless controls to switch between pedal assist and throttle control on the go.

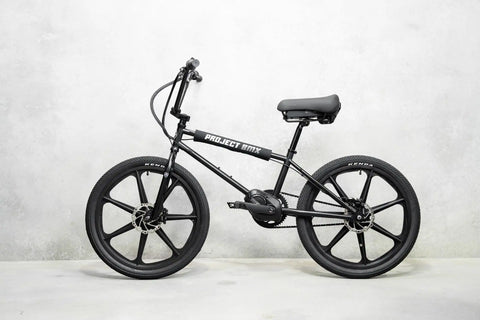

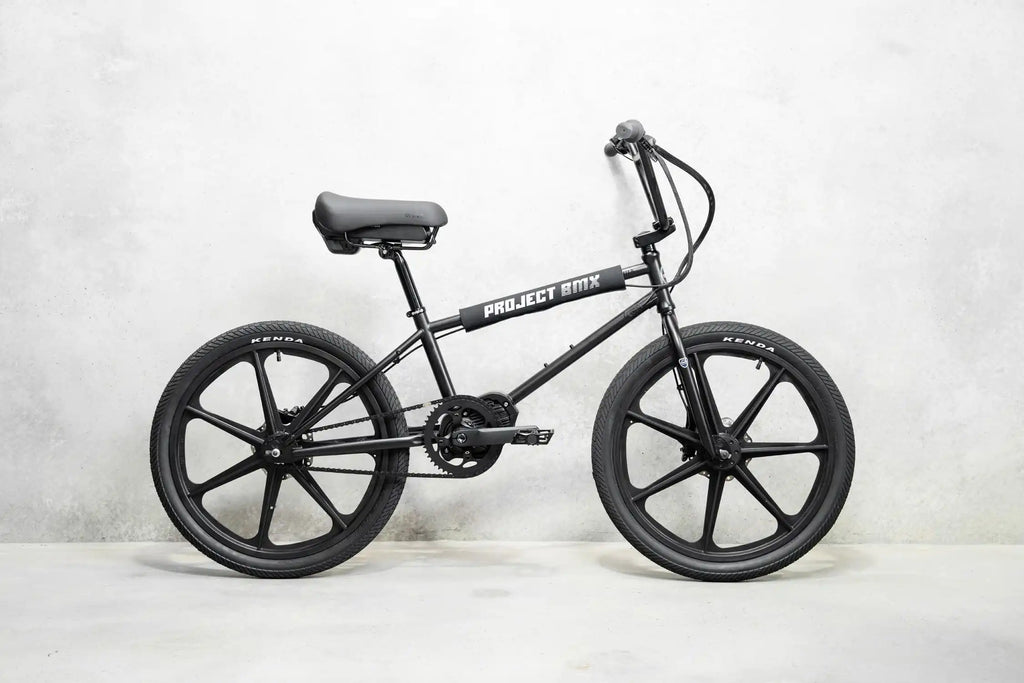

Skyway Tuff Wheels, proudly crafted in Baldwyn, Mississippi, embody American craftsmanship. Utilising a unique Zytel Nylon blend, they stand as the firmest plastic wheels.

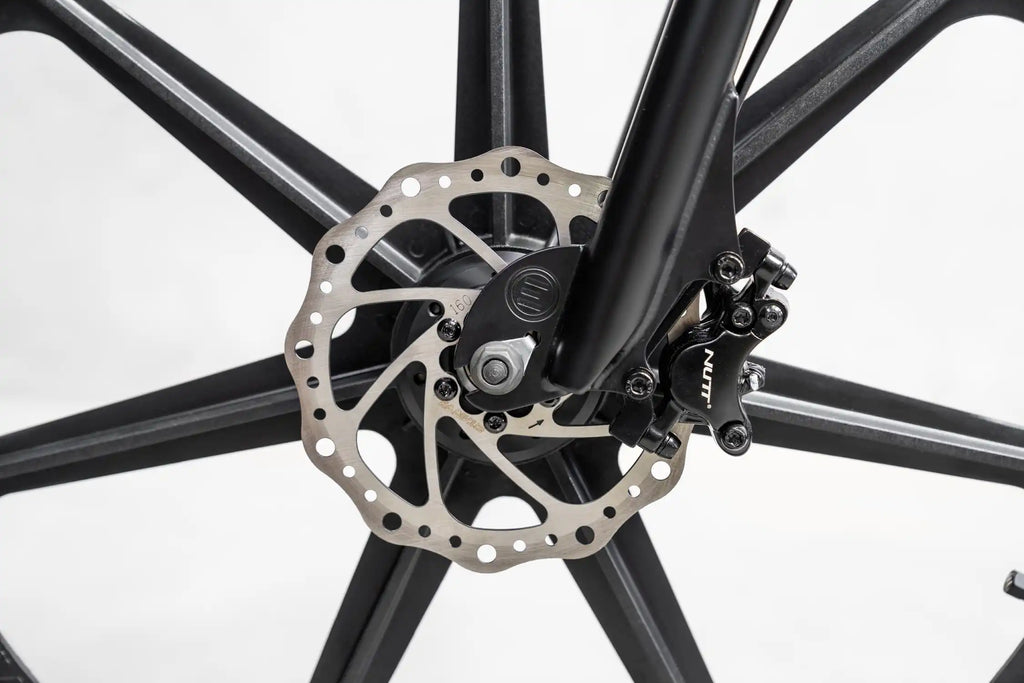

With 45 years in the industry, Skyway is integral to retro BMX, seamlessly enhancing Project BMX's aesthetic. Our hub mount, compatible with a disk rotor on Skyway Tuffs, achieves a timeless appearance while enabling the use of a rear disk brake.

REVIEWS

Write a Review

average rating 5.0 out of 5

Based on 17 reviews

5 Stars

17 Reviews
4 Stars

0 Reviews
3 Stars

0 Reviews
2 Stars

0 Reviews
1 Star

0 Reviews

100% of reviewers would recommend this product to a friend

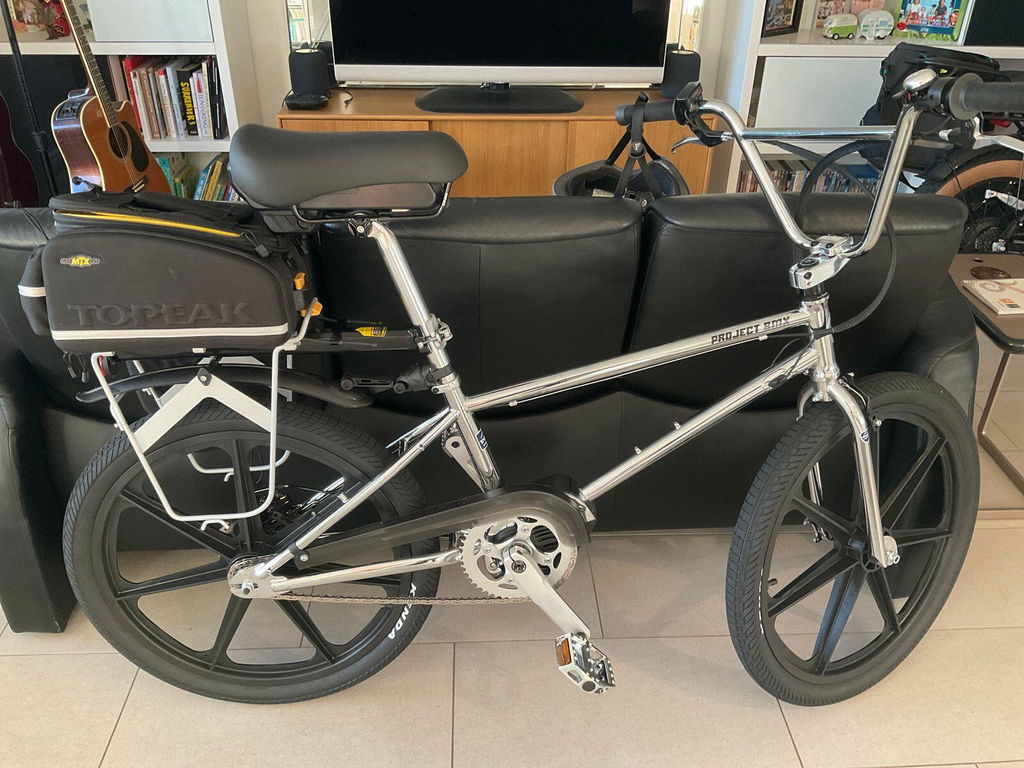

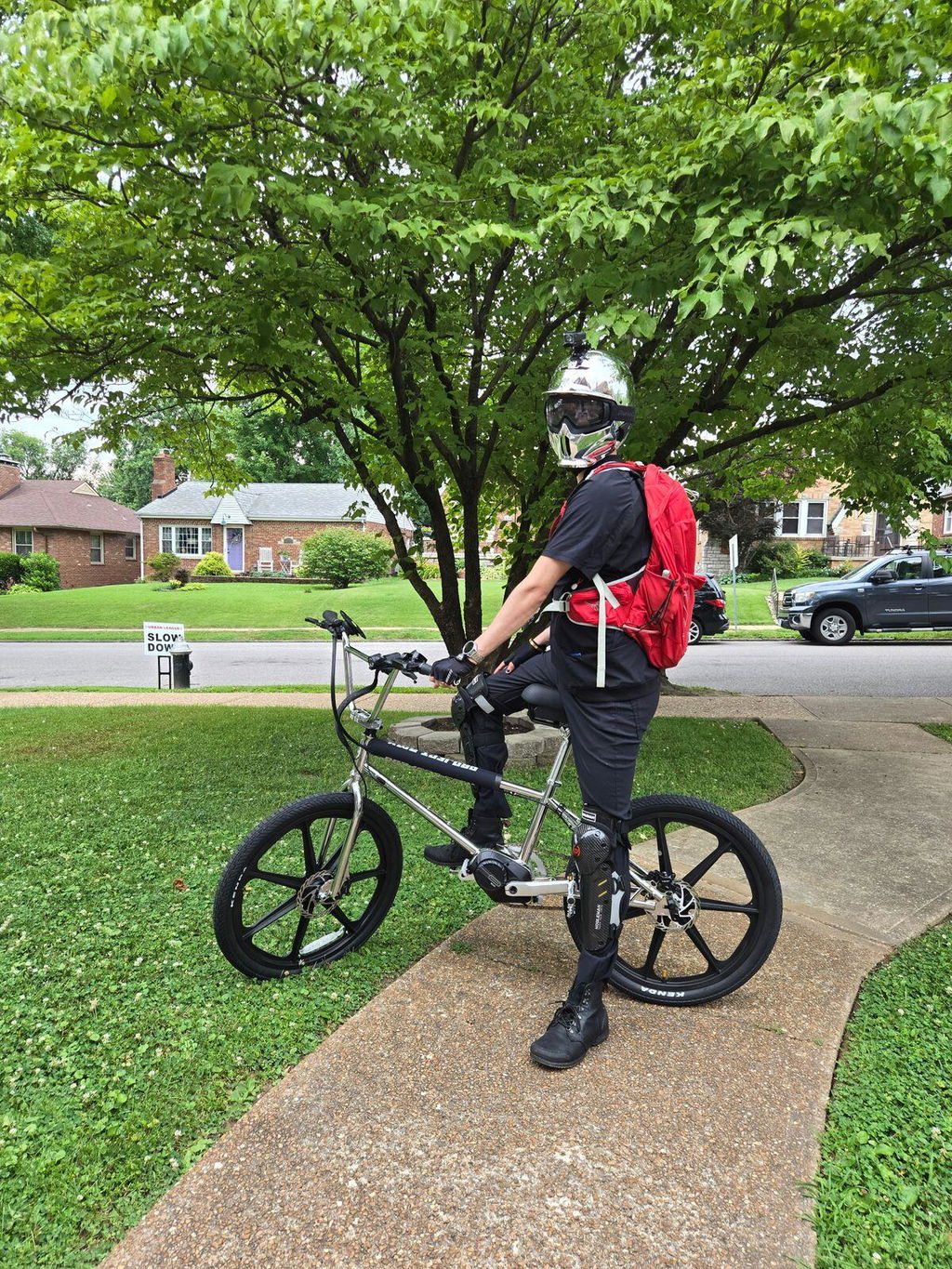

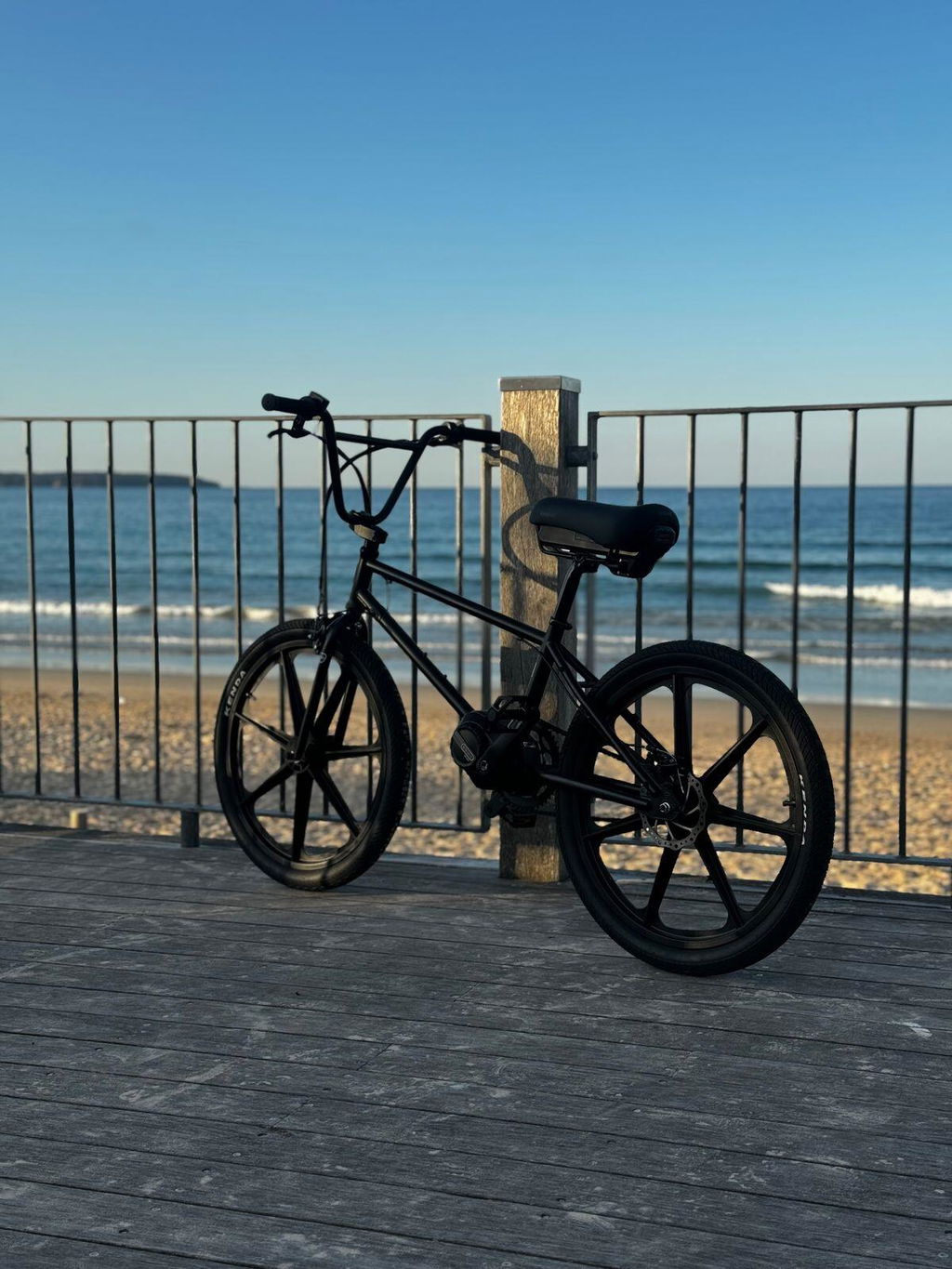

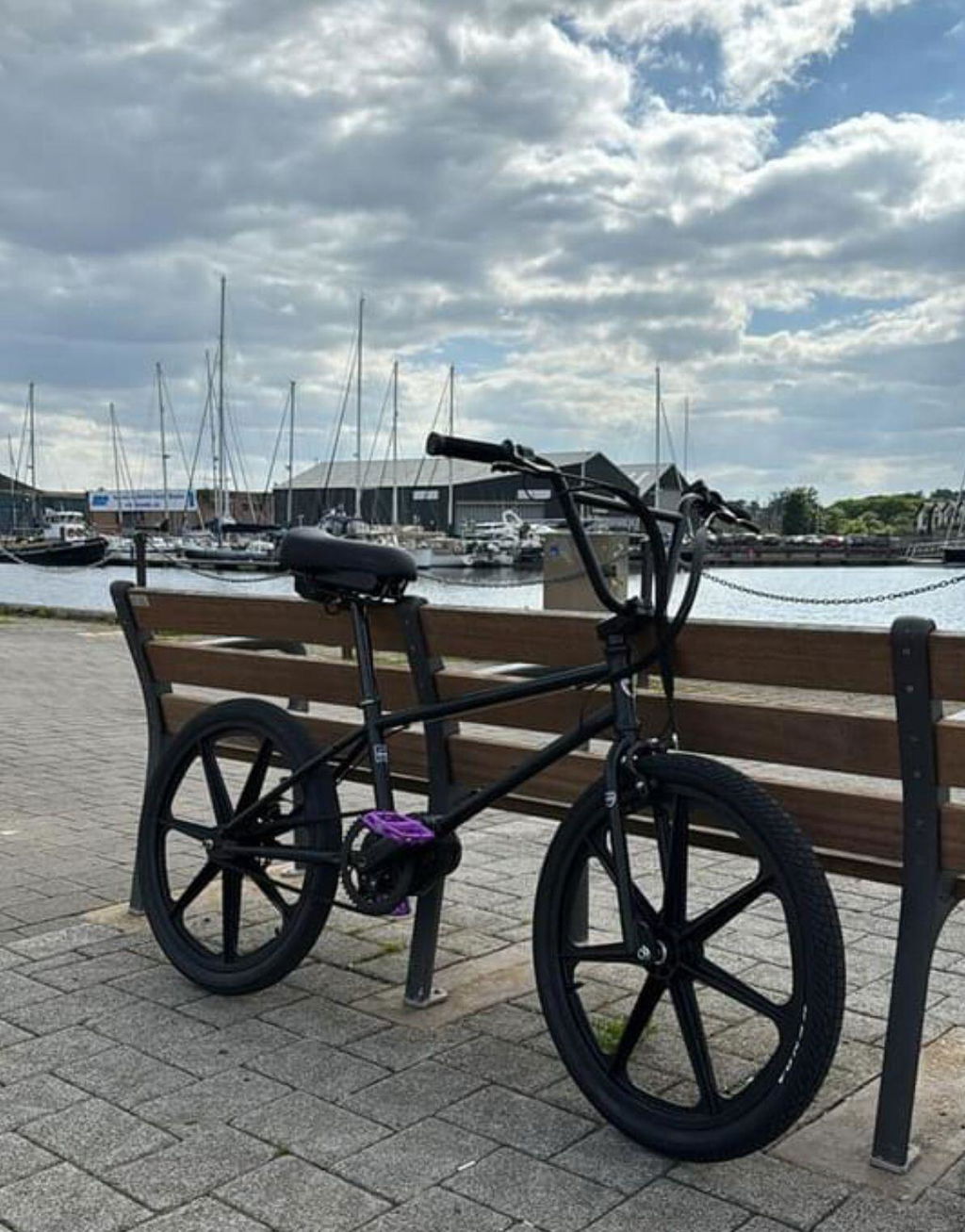

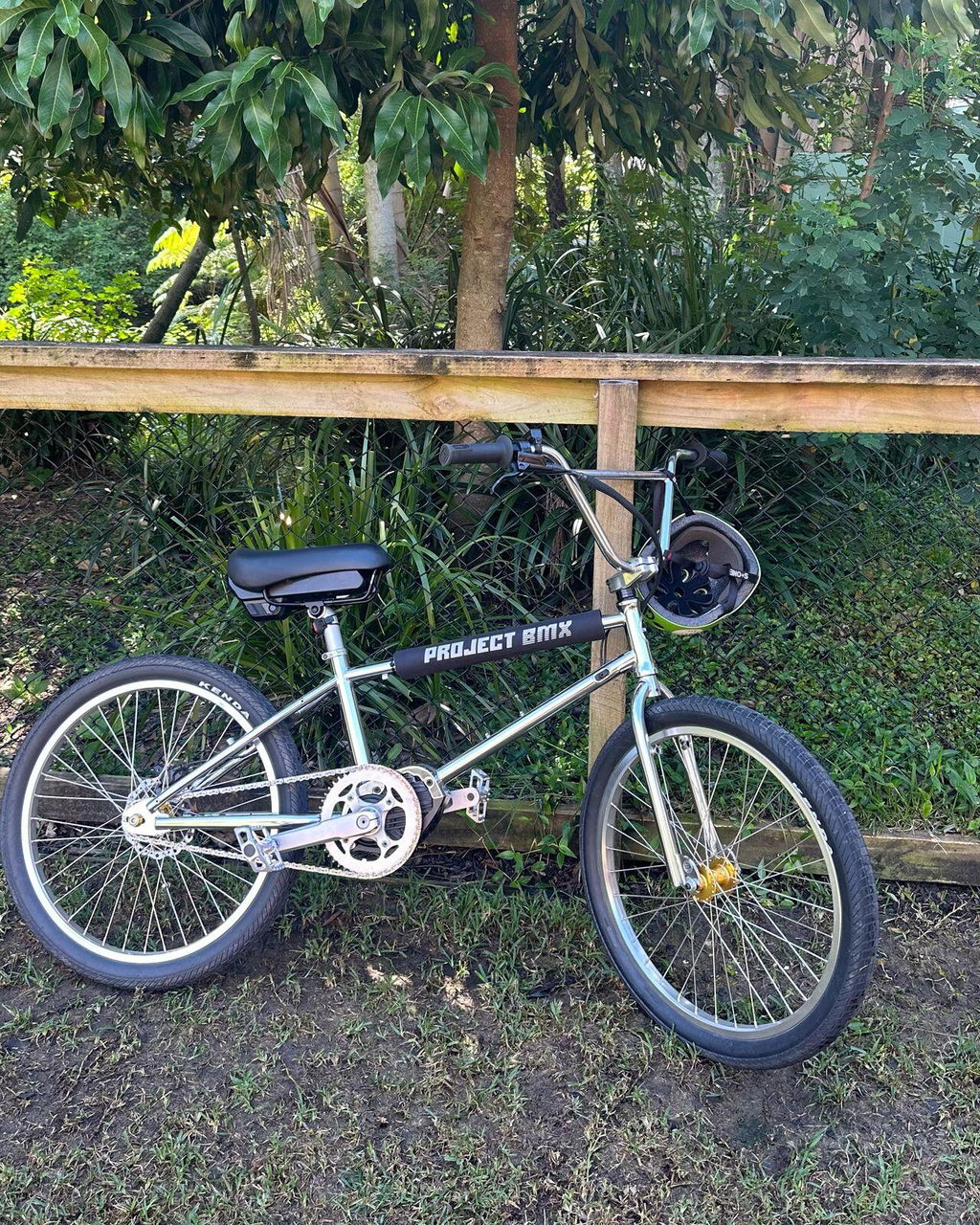

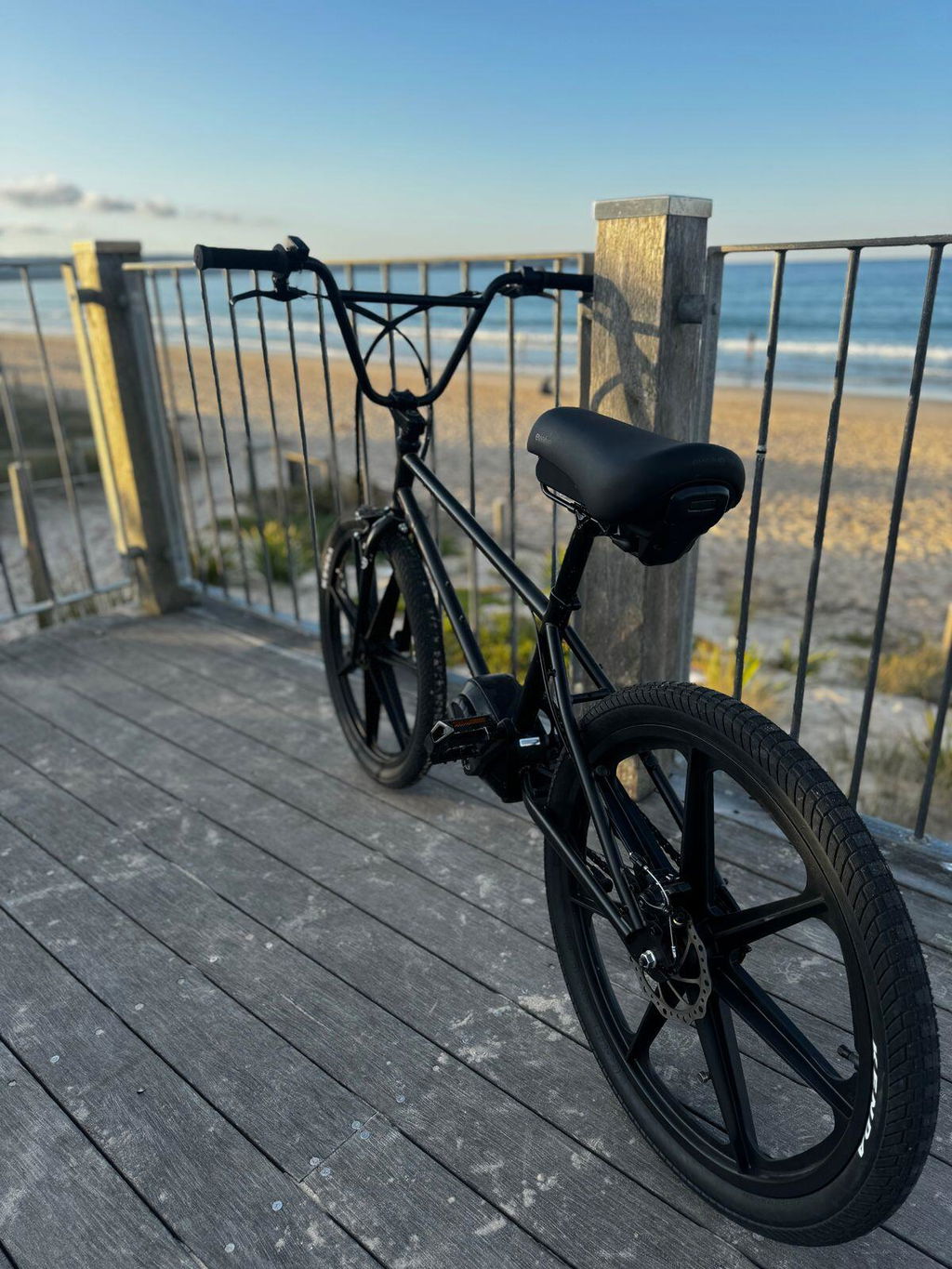

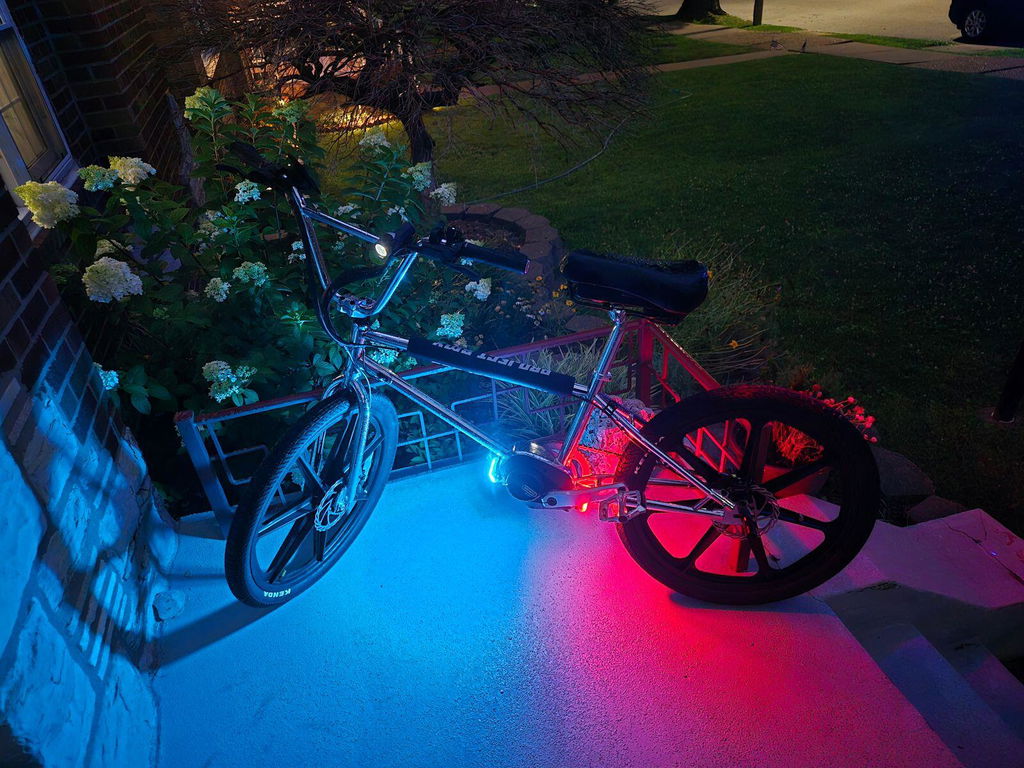

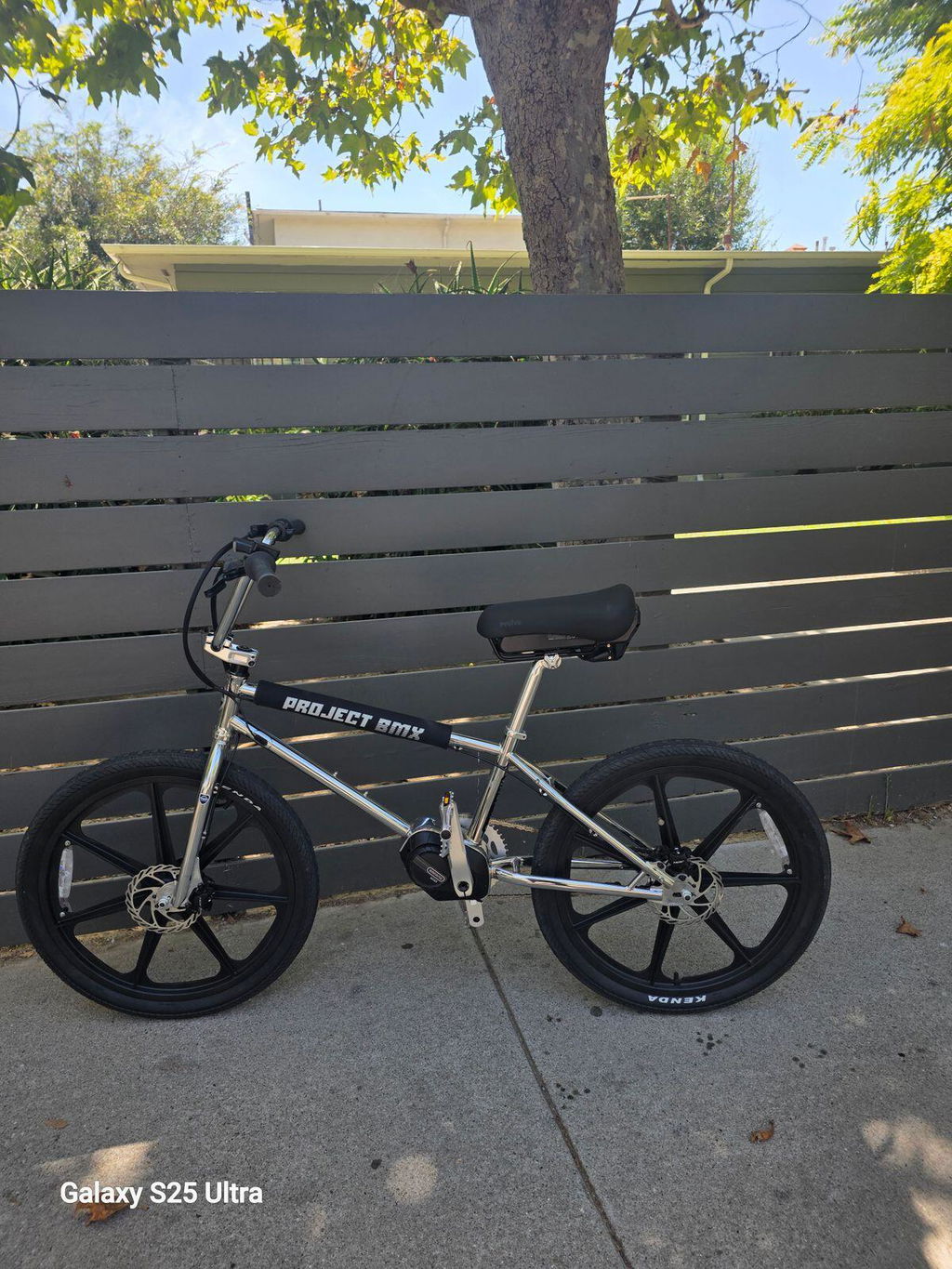

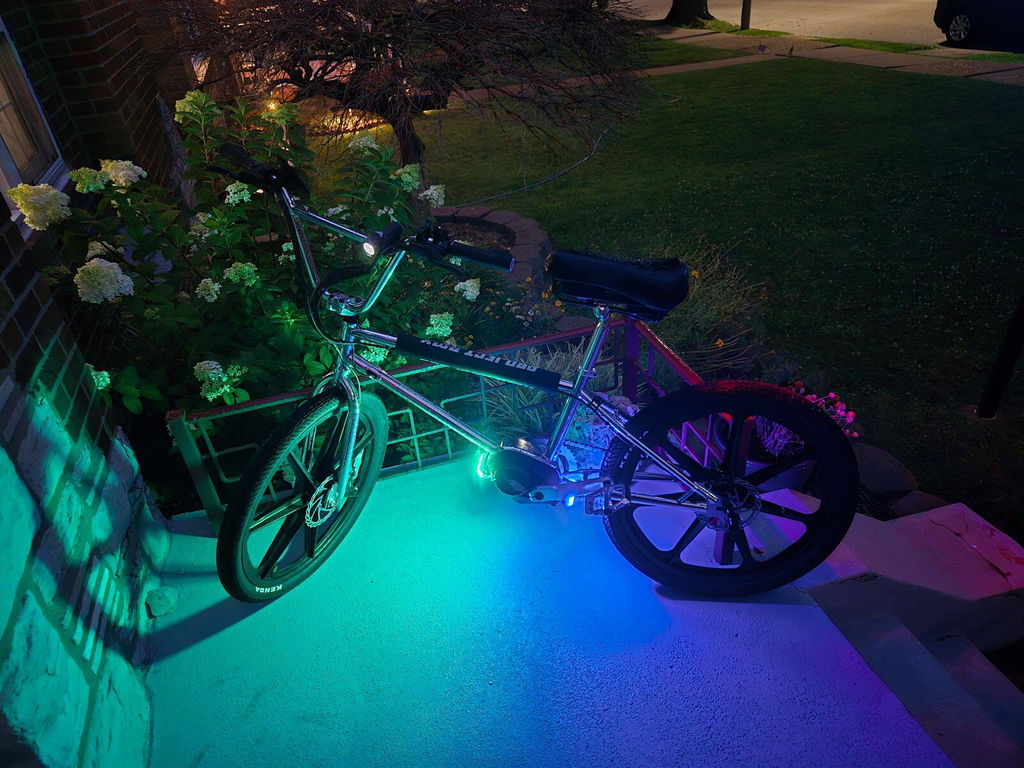

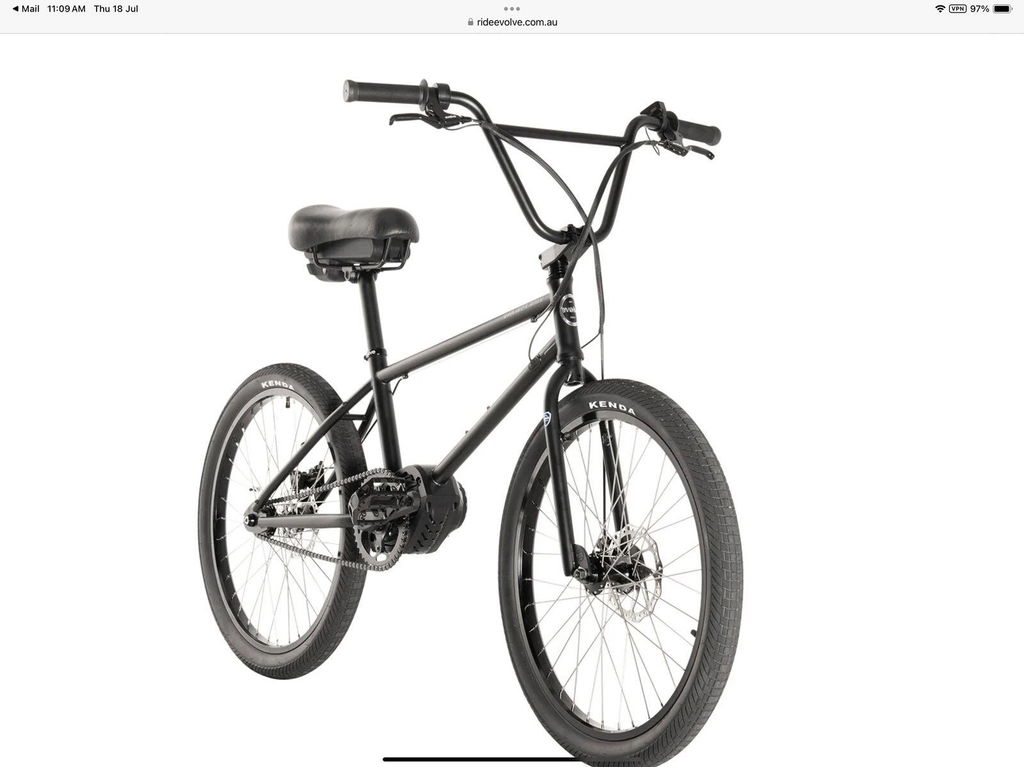

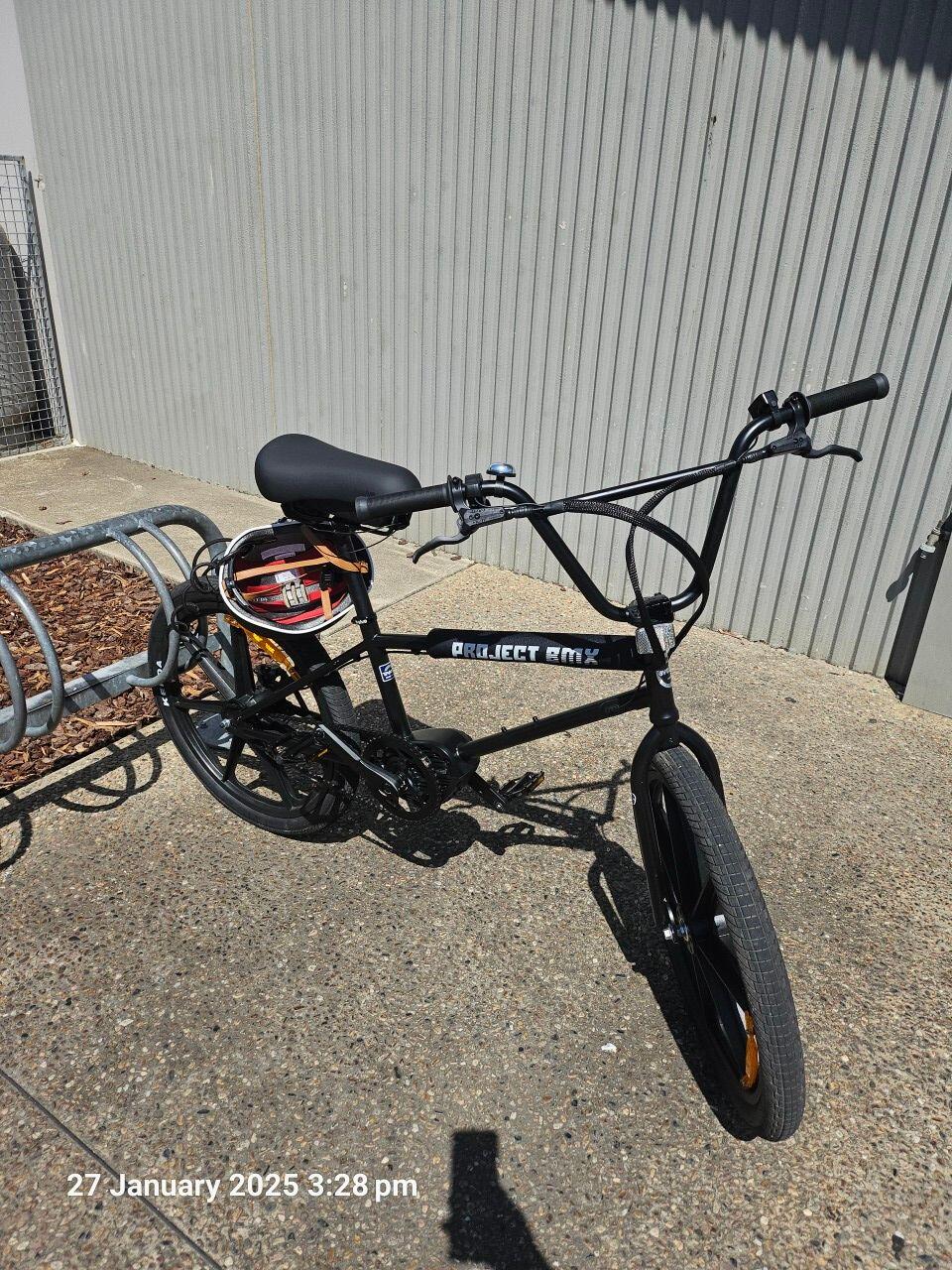

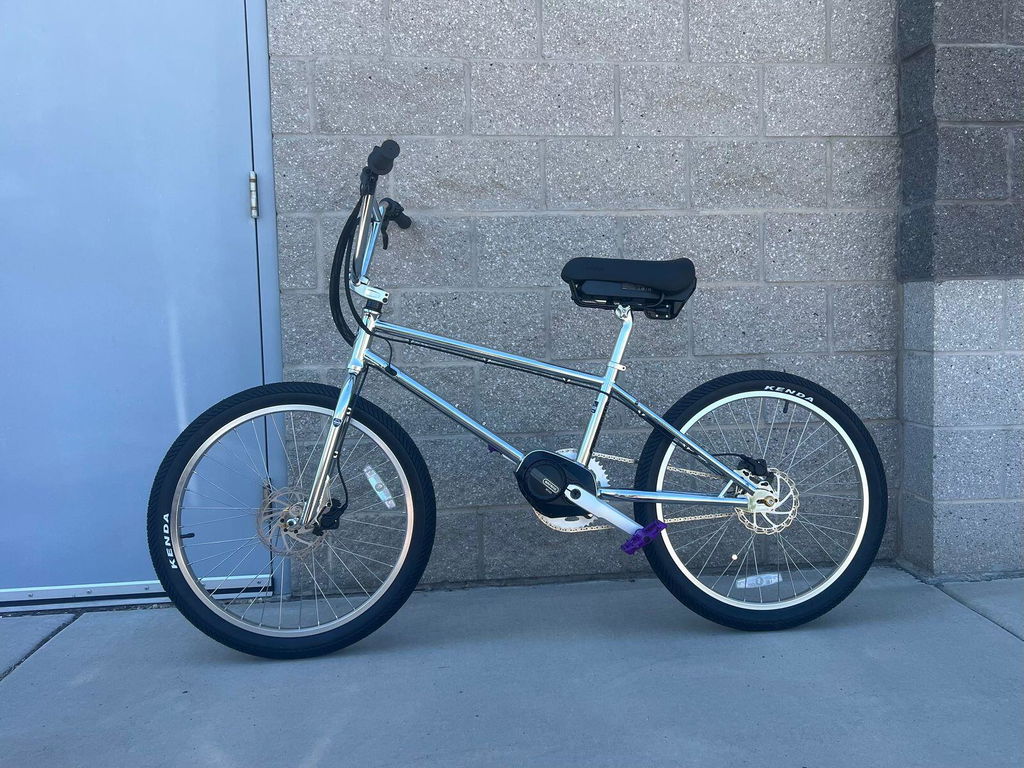

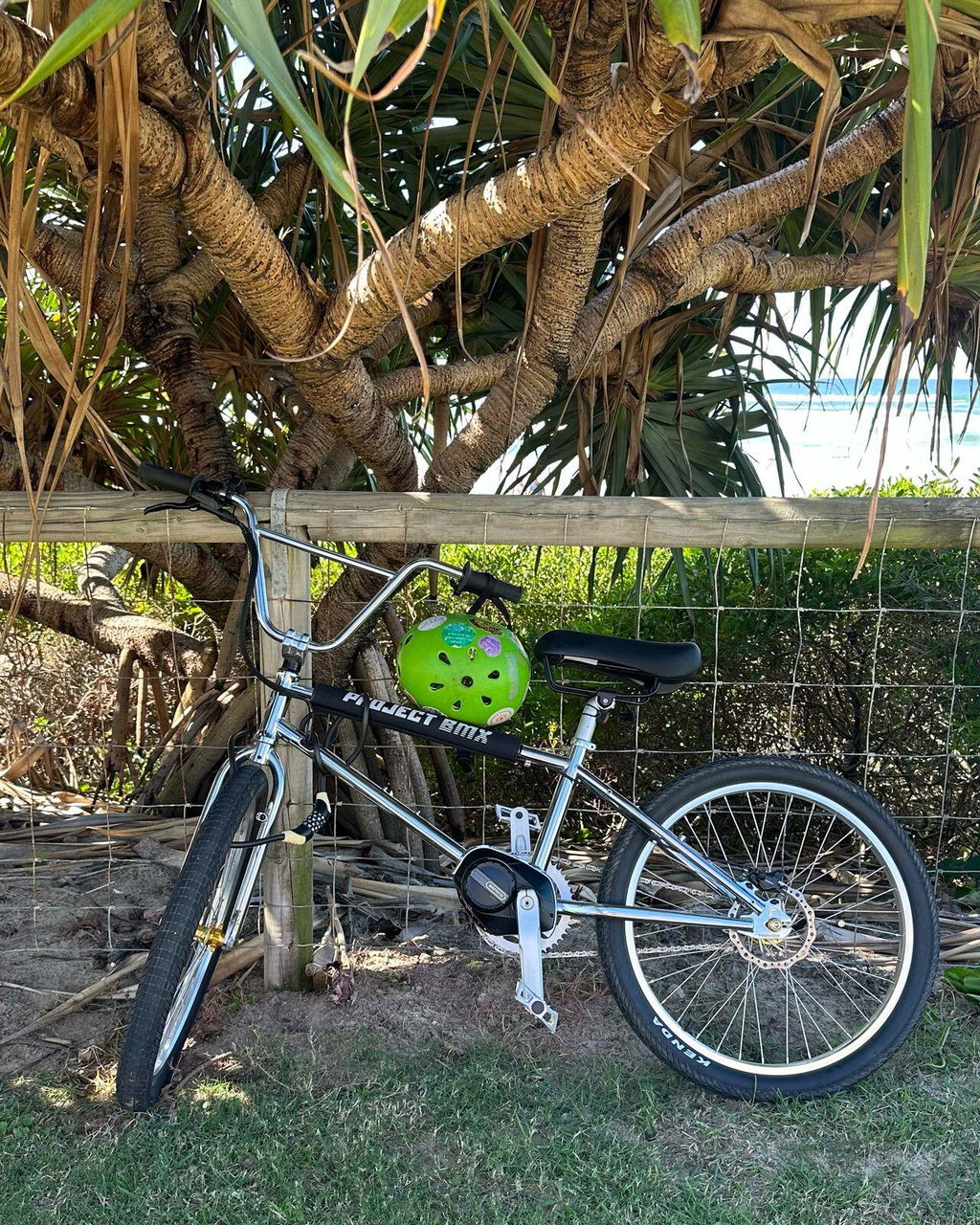

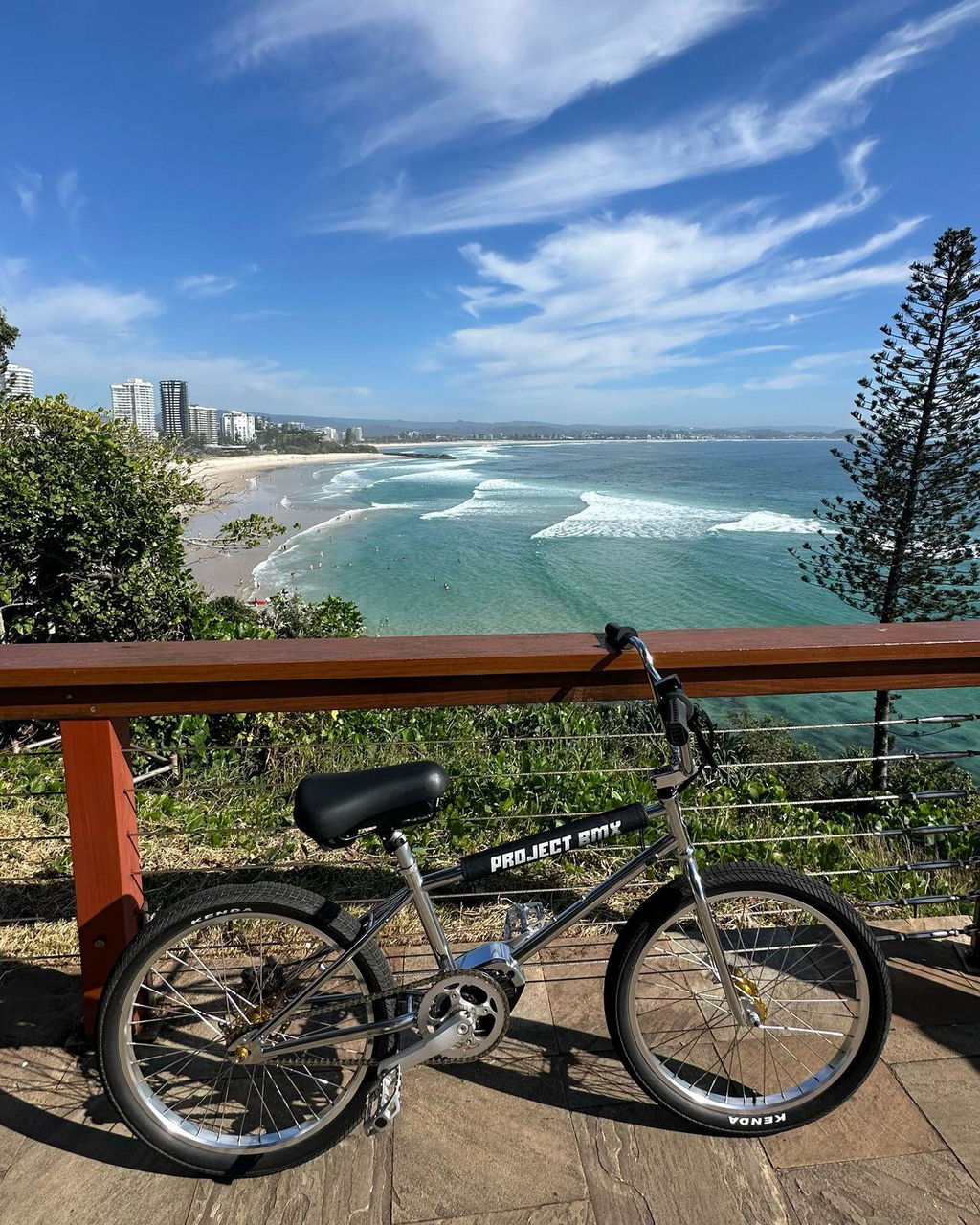

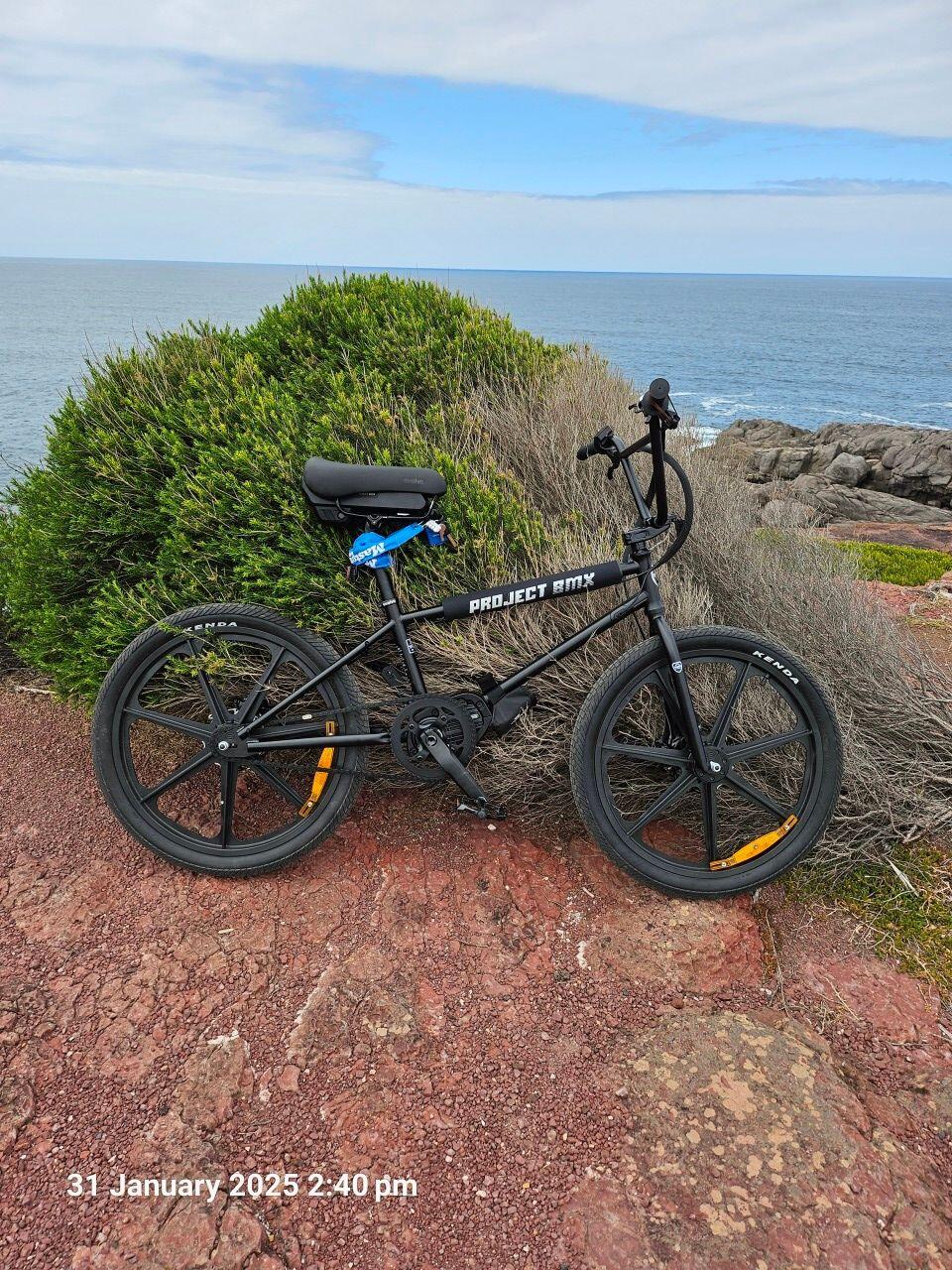

Customer photos and videos
