DESCRIPTION

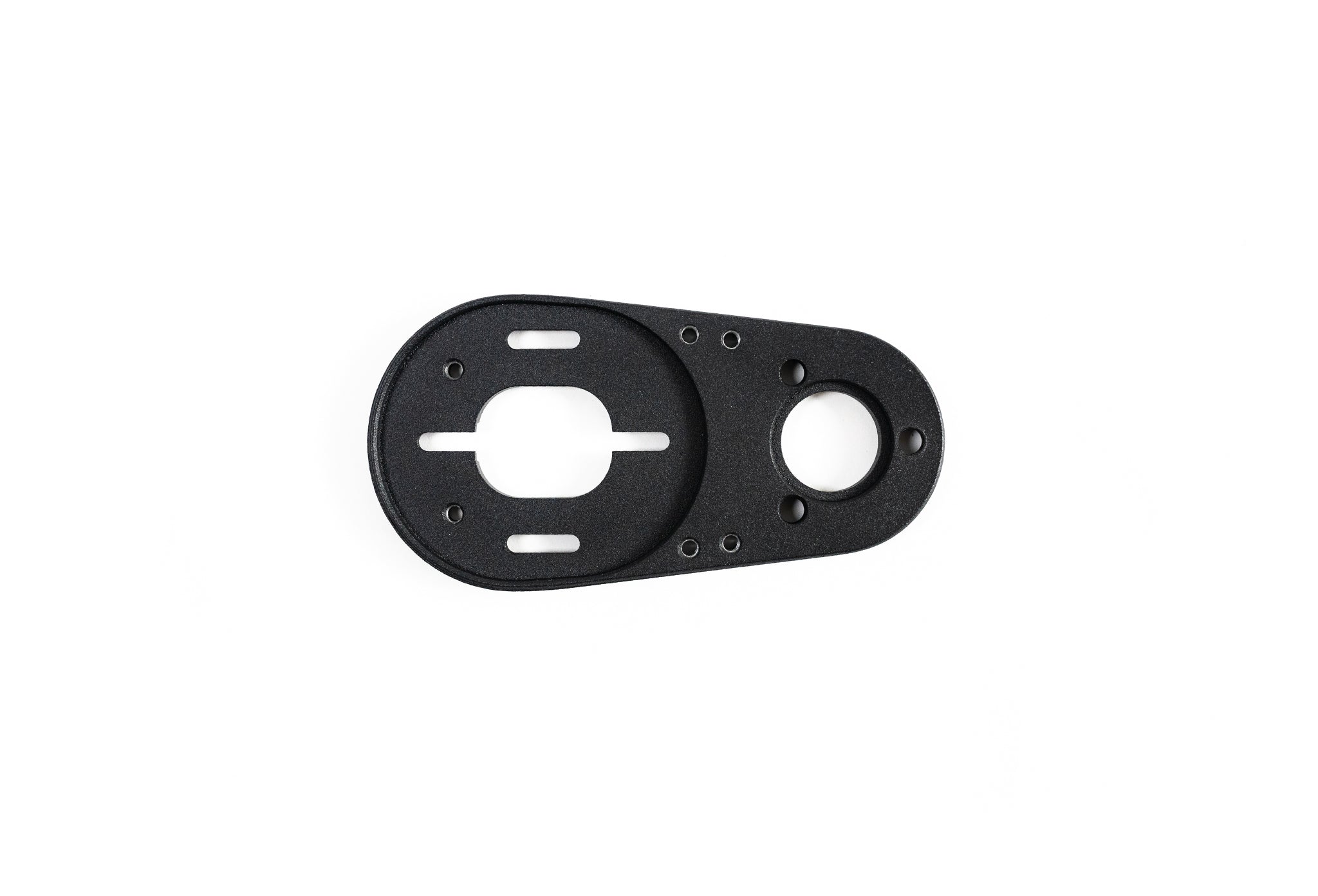

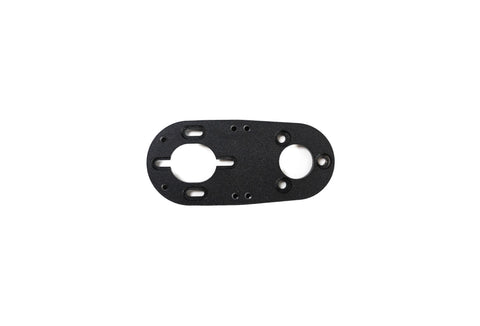

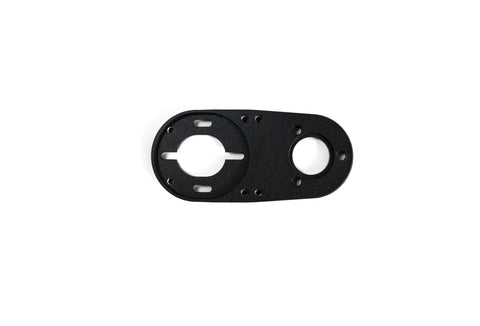

Replacement motor plate for Evolve Skateboards.
Contents: 1 x CNC Motor Plate
Please see the compatibility section for more information:
Motor plate Compatibility
SC2/3000w & 3500w: Renegade, Diablo, Fusion and Stoke X + when upgrading to SC2 Trucks.
SC1/3000w: Hadean and GTR2
SC1/1500w: Stoke 2, GTR1, Stoke 1, GT, GTX and GT ONE
For Gen 1/2 boards: please contact us for installation
Please find instructions below on Removing/Installing a Motor.
- Ensure the board is off.
- Remove the P-clips on the rear base plate by undoing the relevant nuts & bolts (not applicable to Hadean/GTR2).
- Disconnect the motor connectors.
- Remove the wheel, belt cover, belt and drive gear.
- Remove the four screws holding the motor in place and remove the motor from the board.
The bolt head size is 1/8 inch, and the correct allen key is provided with every board.
To install the new motor, repeat the steps in reverse.
Be sure to set your belt tension correctly, see our video here for help.
If you have any questions, please don't hesitate to email our customer service team at ask@evolveskateboards.com.au.
DOMESTIC SHIPPING
All our boards are sent through Startrack or TNT Road Freight. Our boards must be handled as dangerous goods due to Australian lithium battery regulations which may require a mandatory overnight holding period, which can affect shipping times. These packages are not tracked as well as standard post so please use the below transit times as a rough guide.
We are unable to ship skateboards and batteries to Parcel Lockers, P.O. Boxes, Military Bases or temporary accommodation. Please provide us with a home/work address and ensure your billing/shipping address is correct.
TRANSIT TIMES:
- South East Queensland, 3 – 5 Days
- Queensland, 5 – 7 Days
- Rural Queensland, 7 – 12 Days
- North Coast of NSW, 3 – 4 Days
- NSW, 4 – 6 Days
- Rural NSW, 7 – 12 Days
- Victoria, 4 – 7 Days
- Rural Victoria, 7 – 12 Days
- ACT, 5 – 7 Days
- South Australia, 5 – 7 Days
- Rural South Australia, 7 – 12 Days
- Western Australia, 7 – 12 Days
- Rural Western Australia, 9 – 12 Days
- Tasmania, 7 - 12 Days
- Northern Territory, 9 - 12 Days
* Please note that all transit times are calculated in Business Days
INTERNATIONAL
Please check here to see if you have a local distributor in your country.
If you do not have a local distributor in your area and it's not listed above please contact ask@evolveskateboards.com.au for assistance.

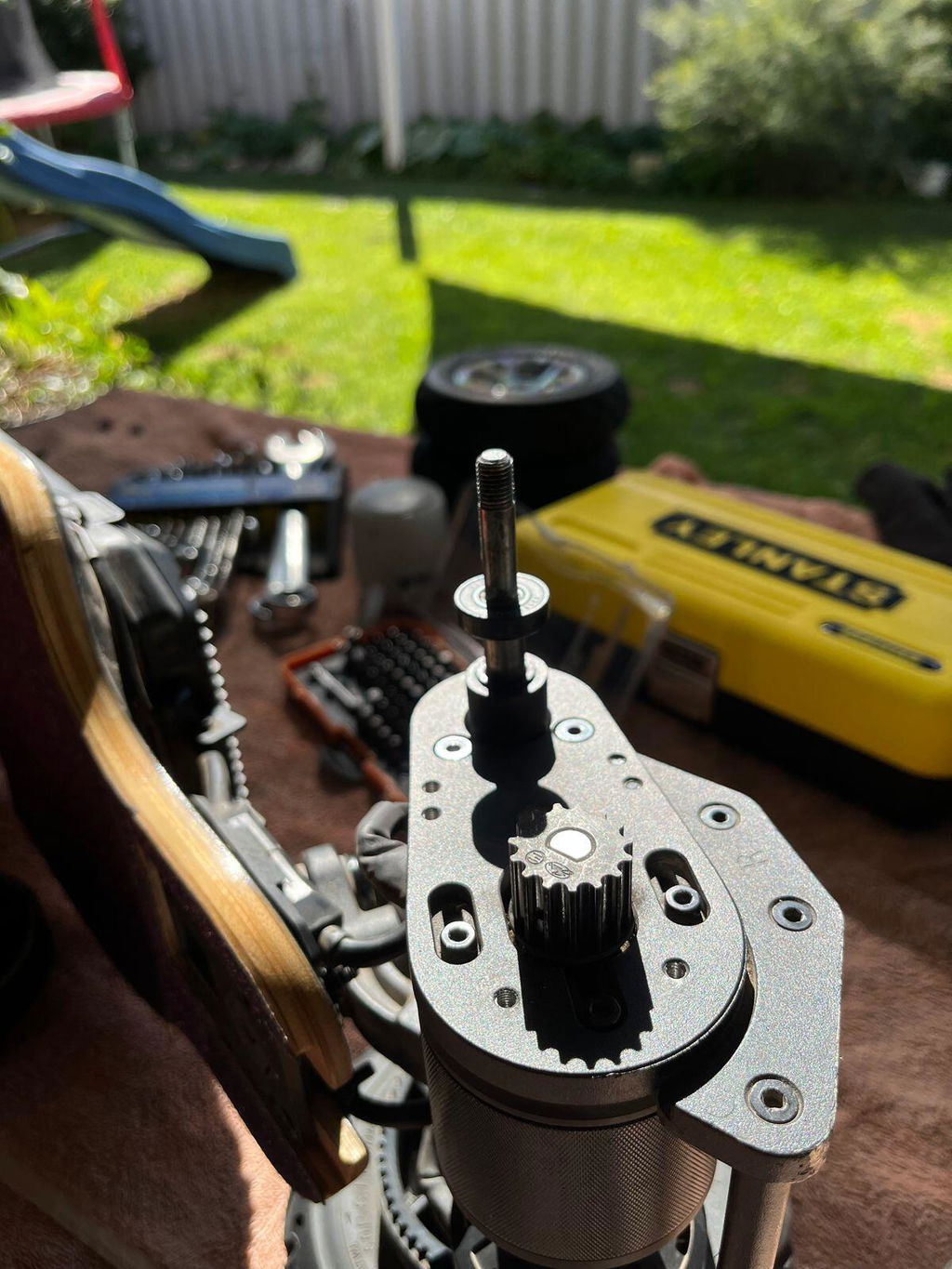

Got the updated motor plates for the Hadean which allow the belts to be tightened further than on the original ones and this will undoubtable lengthen the life of the belts, so worth the time and effort to update. Also appreciate the support rom the team at Evolve to help me get this sorted.
