Diablo Bamboo 2 in 1
Diablo Bamboo 2 in 1

Diablo Bamboo 2 in 1

$2,869.00$3,169.00

As low as 6 payments of $478.16 with

  • Ride it with Street or All-Terrain Wheels
  • Bamboo-Fiberglass Flex Deck
  • Unmatched Performance
Notify Me When Available

SHIPS FROM LATE NOVEMBER

ABOUT THE BOARD

 Unleash the ultimate in skating versatility with the Diablo Bamboo 2in1, engineered to replicate the endless surf wave, or limitless snowboard run. Crafted for the thrill-seeker who craves both city-slicking and off-road adventures, this board transforms seamlessly between a street setup and an all-terrain beast with the flick of a switch. Picture yourself gliding effortlessly through city streets at sunset, then conquering rugged trails on a weekend escape—all on one board.

Featuring dual 6374 3500W brushless motors, the Diablo Bamboo 2in1 reaches speeds up to 50 km/h, ensuring you can accelerate with lightning speed and climb hills with ease. Samsung's cutting-edge 50S battery technology delivers up to 80 km of range on street wheels - no more range anxiety. Enhanced by Evolve’s Super Carve 2 Trucks for unparalleled stability and precision and the eFOC 2.0 Motor Controller with Bluetooth connectivity for intuitive control, the Diablo is not just a board—it's the ultimate ride.



SPECS

DECK MATERIALS:3-Ply Bamboo, 2-Ply Fibreglass
DECK LENGTH:101cm (39.7")
WHEEL BASE:97-99.3cm (38-39")
TRUCKS:Evolve Supercarve 2 - Forged/CNC  - Silver Finish

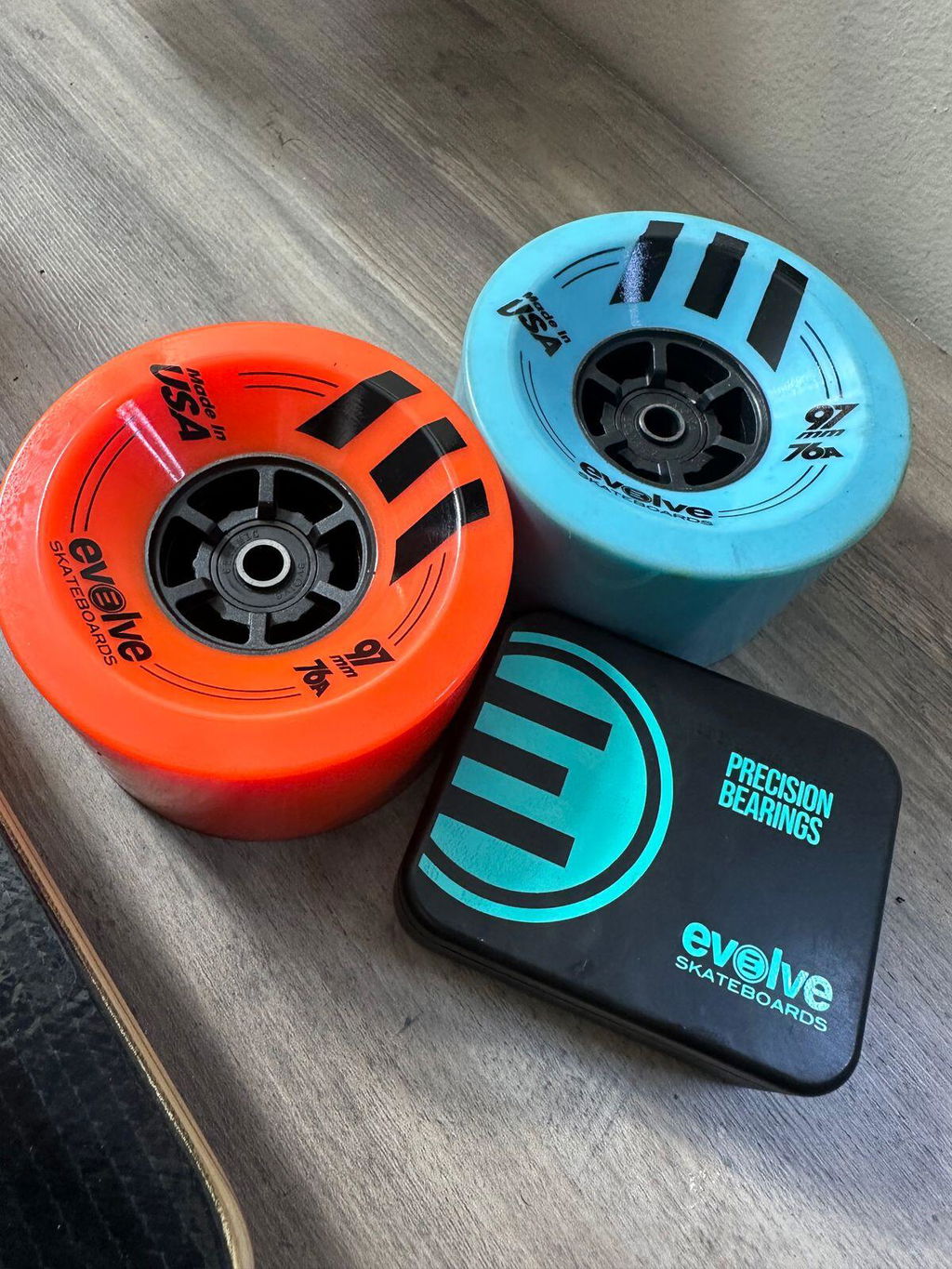

WHEELS:All Terrain: Evolve 175mm/7 inch pneumatic tyres. Street:  Evolve custom-formula 97mm, 76a urethane wheels, made in USA - Compatible with Evolve All-Terrain Conversion Kits.
MOTOR:Dual 6374 3500w rated  (7000w Total) custom brushless sensored motors

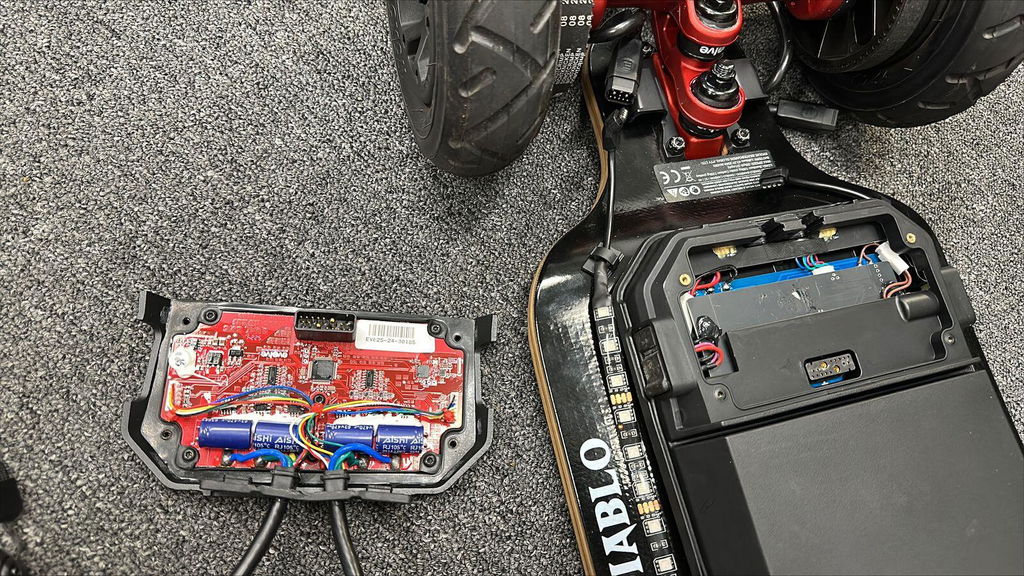

MOTOR CONTROLLER / ESC:EFOC 2 - Evolve Custom 50V, 200A Dual-Motor Driver, FOC motor commutation, Bluetooth Connection.
BEARINGS:Evolve Precision  Bearings
BATTERY:43.2v - 864WH - 20AH - Samsung 50S
RECHARGE:4 hrs
REMOTE:Evolve Phaze remote with CNC aluminium-reinforced body
WEIGHT:All Terrain: 15.3kg (33lb); Street: 14.1kg (31lb)
RANGE:All Terrain: Up to 50km (31 miles)
Street Wheels: Up to 80km (50 miles)
TOP SPEED:50km/h (31 mph)
MAX LOAD:120 kg (265 lbs)
SUITABLE TERRAIN:Short grass, dirt, gravel, roads and footpaths
SLIDES:Yes
HILLS:45% + gradient.
BRAKING:EFOC2 regenerative braking, super smooth with adjustable brake and acceleration curves using the Explore APP
AESTHETICS:Sophisticated traditional-styled bamboo deck, modernised by the use of feet-locking dropdowns and a 'W' concave.
LIGHTS:Front and rear LED lights. User-customisable control via remote and Evolve app.

WHAT'S IN THE BOX

Your new Diablo Bamboo 2 in 1
Fast charger (5A)
Phaze Remote, leash and USB-C charging cable
Y tool
Spare screws set

SHIPPING

If you have any questions, please don't hesitate to email our customer service team.



DOMESTIC

All our boards are sent through Startrack or TNT Road Freight. Our boards must be handled as dangerous goods due to Australian lithium battery regulations which may require a mandatory overnight holding period, which can affect shipping times. These packages are not tracked as well as standard post so please use the below transit times as a rough guide.

We are unable to ship to PO boxes, military bases or temporary accommodation. Please provide us with a home/work address and ensure your billing/shipping address is correct.

TRANSIT TIMES:

  • South East Queensland, 3 – 5 Days
  • Queensland, 5 – 7 Days
  • Rural Queensland, 7 – 12 Days

  • North Coast of NSW, 3 – 4 Days
  • NSW, 4 – 6 Days
  • Rural NSW, 7 – 12 Days
  • Victoria, 4 – 7  Days
  • Rural Victoria, 7 – 12 Days
  • ACT, 5 – 7 Days
  • South Australia, 5 – 7 Days
  • Rural South Australia, 7 – 12 Days
  • Western Australia, 7 – 12 Days
  • Rural Western Australia, 9 – 12 Days
  • Tasmania, 7 - 12 Days
  • Northern Territory, 9 - 12 Days

 * Please note that all transit times are calculated in Business Days



INTERNATIONAL

Please check here to see if you have a local distributor in your country.

If you do not have a local distributor in your area and it's not listed above please contact ask@evolveskateboards.com.au for assistance.



FAQs

Please view more FAQs through this link here.

OFFERS

HALF PRICE HELMETS!

We want everyone to ride safely so when buying a board you can get an Evolve Helmet at HALF PRICE by adding the discount code HELMET during checkout.


** PLEASE NOTE:

- ONLY ONE DISCOUNT CODE CAN BE REDEEMED DURING CHECKOUT

- YOU MUST ADD A HELMET TO YOUR CART FIRST

FAQ

1. Whats the difference between the Hadean and Diablo series?

 The Diablo Series is Evolves latest technology release and supersedes the Hadean series. Comparing to the Hadean boards, the diablo series uses larger more powerful motors, a new EFOC 2.0 ESC, it has a higher top speed rating, has 20% more ride times due to the larger capacity battery, stronger acceleration and braking performance and new Forged CNC SuperCarve 2 truck design. The Diablo also comes with an upgrade Software package.


2. Can I upgrade my Hadean board to perform like the Diablo?

It's possible to turn the Hadean into a Diablo, however to do this it will require a new Samsung 50S battery, 2 new 6374 motors and a new EFOC 2.0 ESC . Swapping these parts will be an expensive upgrade, its far better off purchasing the complete Diablo board which includes a new deck and the SuperCarve 2.0 trucks.


3. Can the Renegade be upgraded to the Renegade Diablo?

 Yes this is possible. To do this you will need 2 new 6374 motors, a new EFOC 2.0 ESC, new remote firmware and new BMS firmware. Please contact Evolve customer service for enquiries.


4. Can I install the new SuperCarve 2 trucks on my Evolve board?

 Yes you can. However you will also need the new AT or Street drive gears that fit the new truck axle. To purchase the new SuperCarve 2 trucks please see the link or contact Evolve customer service for enquiries.


5. Why does my remote vibrate when accelerating hard or riding up a hill?

 If your remote vibrates under these riding conditions its possible you have activated ‘Over Current mode’. The Diablo board allows for a large amount of current to be used for a period of 7-8 seconds only. After 7-8 seconds the remote will drop to Sport mode until you release the acceleration trigger in which the remote automatically returns to Corsa mode.


6. Can I install the Diablo 6374 motors on my Hadean?

 The motors can fit the Hadean motor plates, however they will not work properly with the Hadean motor controller, BMS and remote due to firmware incompatibility.


7. Why is my remote displaying ‘Heat’ and vibrating?

 If your remote displays Heat this means you have activated heat protection on your skateboard and the remote is telling you this. If the motor controller gets over 85 degrees or the battery gets above 70 degrees the motor controller will reduce power until the system recovers and cools down.
